WEICHAI

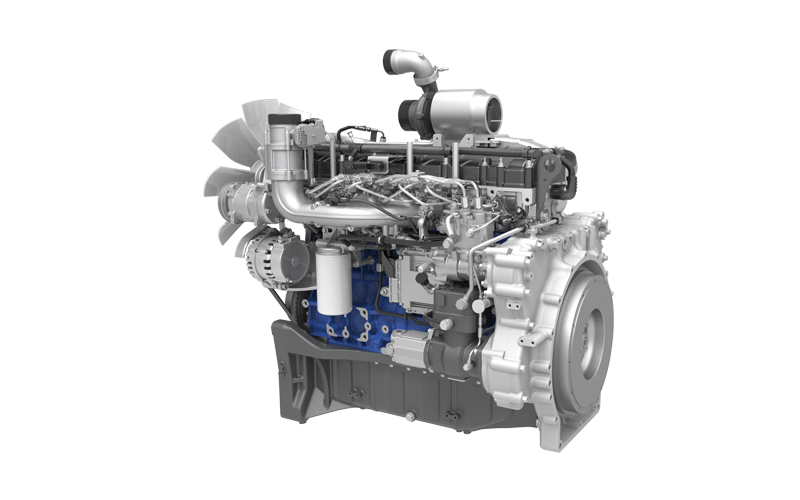

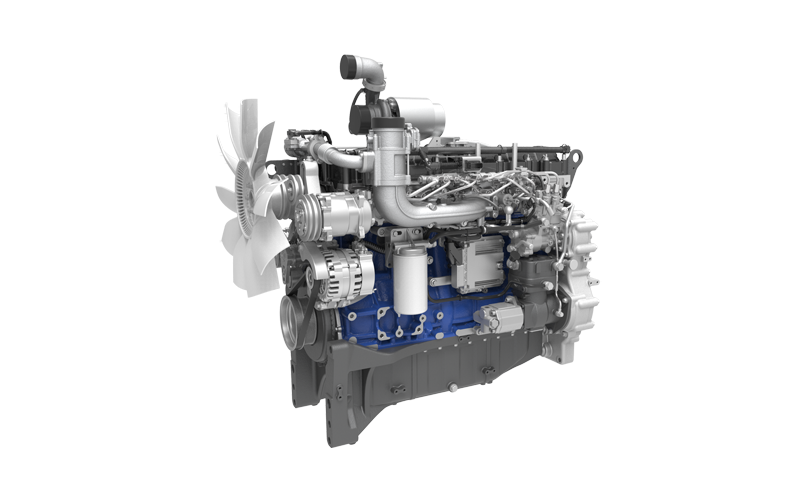

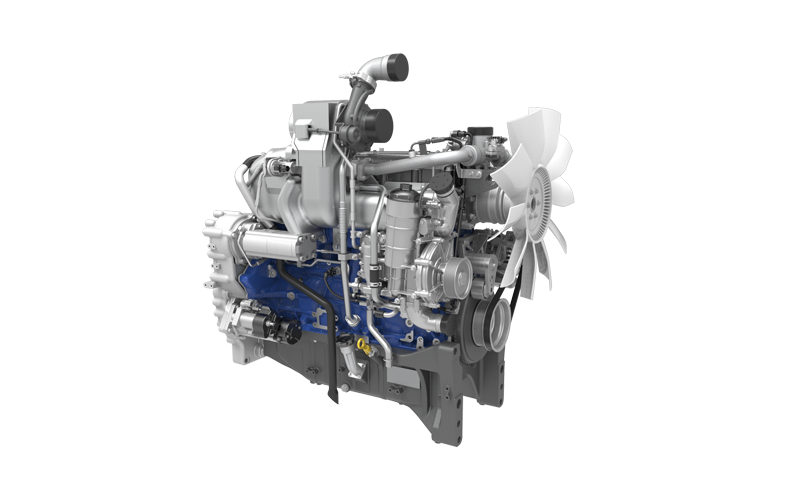

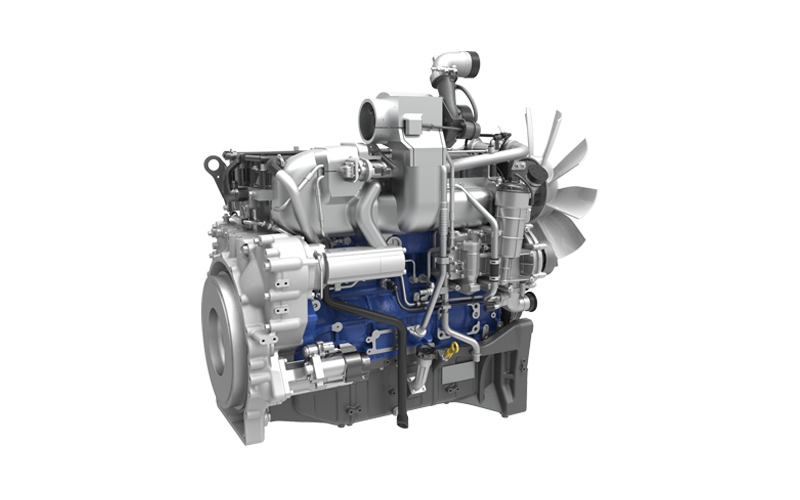

WP7H Engine for Tractor

Adapted for 130–220 PS wheeled tractors.

103-162/140-220

功率范围 kW/Ps

920/1600

最大扭矩/转速 N·m / r/min

产品概述

The Weichai WP7H tractor engine delivers high power, fuel efficiency, and environmental compliance. Featuring a four-valve structure and overhead camshaft, it offers high reliability, suits harsh agricultural conditions, and meets multiple emission standards.

产品优势

Power Performance: With a 6.8L displacement and power ranging from 103 to 186 kW, the four-valve structure ensures optimized air intake. It provides high torque at low speeds and a high torque reserve, resulting in rapid power response, strong anti-bogging capability under load, and significantly improved farming efficiency.

Economy: Equipped with an electronically controlled high-pressure common rail (HPCR) system, it achieves precise fuel atomization and superior combustion efficiency, delivering 5%–8% better fuel economy than China Non-Road Stage III products, while supporting customized power requirements via proprietary ECU.

Reliability: The overhead camshaft design eliminates traditional pushrods, reducing failure rates. It comes standard with a triple-stage fuel filter and a dust filtration system with ≥93% efficiency, ensuring high durability in poor fuel and harsh environmental conditions, along with excellent low-temperature starting performance. Produced in digital factories to guarantee consistent quality.

Comfort and Emissions: Lower vibration and noise levels reduce operator fatigue; Complies with EU Stage IIIA/China Non-Road Stage IV emission standards for environmental compliance. A modular family design ensures organized fuel lines and routing for convenient maintenance.

产品规格

功率范围 kW/Ps
103-162/140-220
最大扭矩转速 N·m / r/min
920/1600
排放标准
EU Stage IIIA
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
6.8
进气方式
Turbocharged and intercooled
发动机尺寸(长×宽×高) mm
1233×704×1119
G重量 kg
800

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP7HG140E302

103/2100

570/1600

6.8

EU Stage IIIA

CR

Tractor

4

WP7HG160E302

118/2100

665/1600

6.8

EU Stage IIIA

CR

Tractor

4

WP7HG192E302

141/2100

890/1600

6.8

EU Stage IIIA

CR

Tractor

4

WP7HG220E302

162/2100

920/1600

6.8

EU Stage IIIA

CR

Tractor

4
