WEICHAI

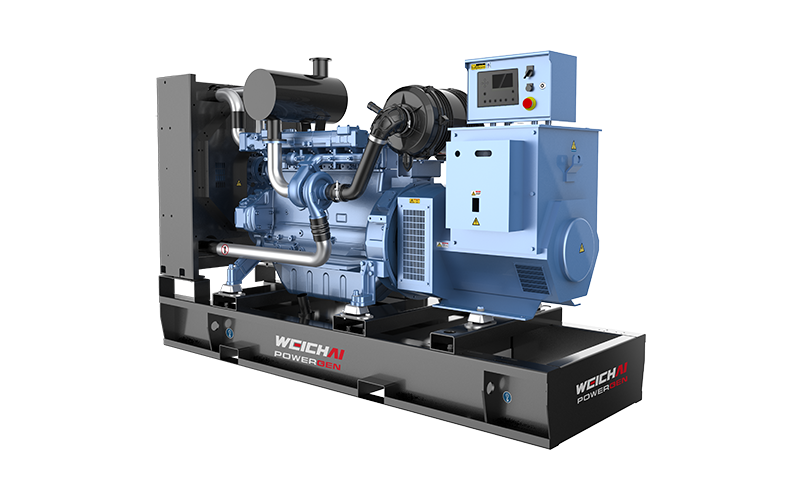

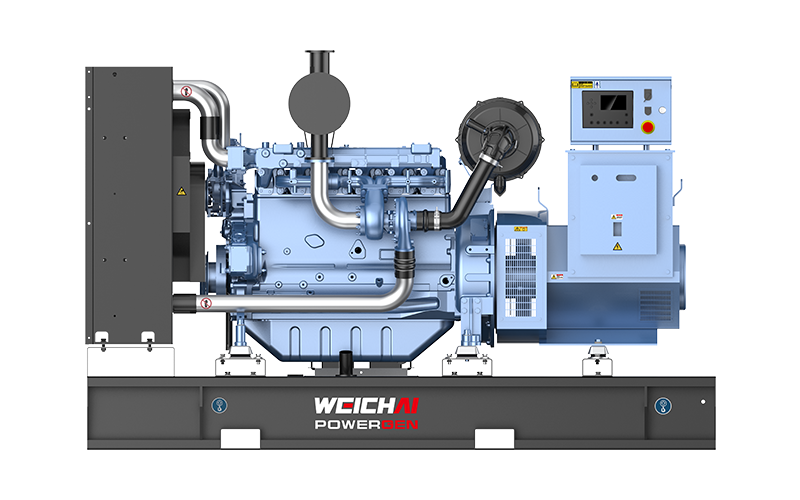

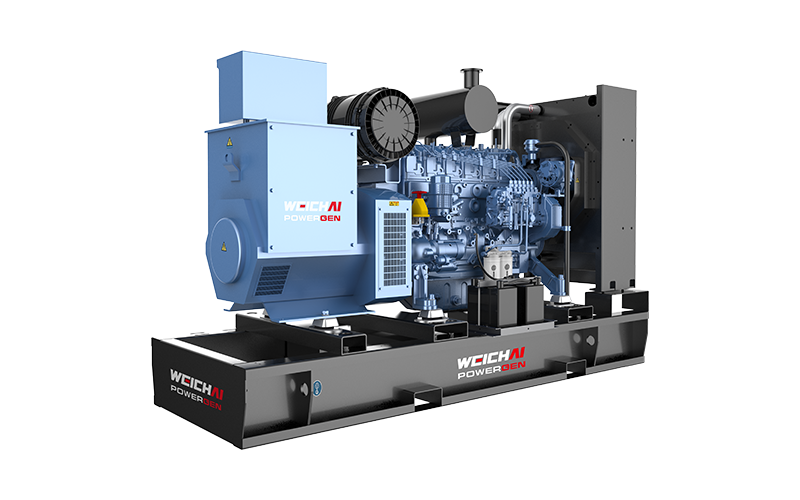

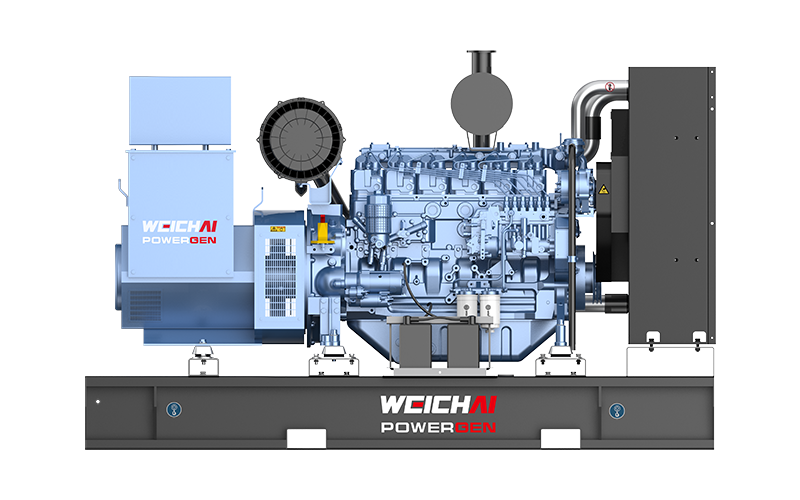

125 kVA-215 kVA Standard Land-based Generator Set Series

Suitable for livestock farming, real estate, industrial warehousing, public utilities, oil fields, mining, and equipment rental applications

100-170

功率范围/持续功率

Open, Silent

结构形式

产品概述

Designed for continuous power supply and frequent start-stop scenarios in low-to-medium power ranges, it is suitable for primary or backup power requirements in industrial warehousing, temporary construction power for real estate, and small-to-medium commercial facilities.

产品优势

High Reliability: Reinforced design and fatigue validation of the crankshaft, connecting rod, and cylinder block ensure stable operation under all load conditions

High Economy: Matched with high-pressure ratio turbochargers to increase air intake, resulting in a flat fuel consumption curve across the full load range for low fuel consumption

Intelligent Control: Supports CAN bus communication and is compatible with mainstream ATS and remote cloud monitoring platforms; standard features include remote start/stop, parameter monitoring, and fault alarming

High Adaptability: Capable of reliable operation in complex environments, including high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions, while maintaining performance with varying fuel qualities.

产品规格

功率范围kWe
100-170
产品系列
燃料
Diesel
发动机型式
Inline
气缸数
6
缸径 × 行程mm
排量 L
6.75
机组尺寸(敞开式)mm
2475 × 978 × 1551 (Open type)
重量(开式)kg
1720 (Open type)
结构形式
Open, Silent

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Rated speed (rpm)

Standby Power (kVA/kW)

Prime Power (kVA/kW)

Weichai Engine Model

Cylinders

Bore × Stroke (mm)

Governing System

Emission standard

WPG138*9

1500

137.5/110

125/100

WP6D132E200

6

105×130

Electronic Governor

Non-Road Emission Exempt

WPG165*9

1500

165/132

150/120

WP6D152E200

6

105×130

Electronic Governor

Non-Road Emission Exempt

WPG110*96

1800

138/110

125/100

WP6D132E201

6

105×130

Electronic Governor

Non-Road Emission Exempt

WPG135*96

1800

169/135

150/120

WP6D158E201

6

105×130

Electronic Governor

Non-Road Emission Exempt

WPG150*96

1800

188/150

/

WP6D180E201

6

105×130

Electronic Governor

Non-Road Emission Exempt

WPG170*96

1800

215/170

/

WP6D200E201

6

105×130

Electronic Governor

Non-Road Emission Exempt
