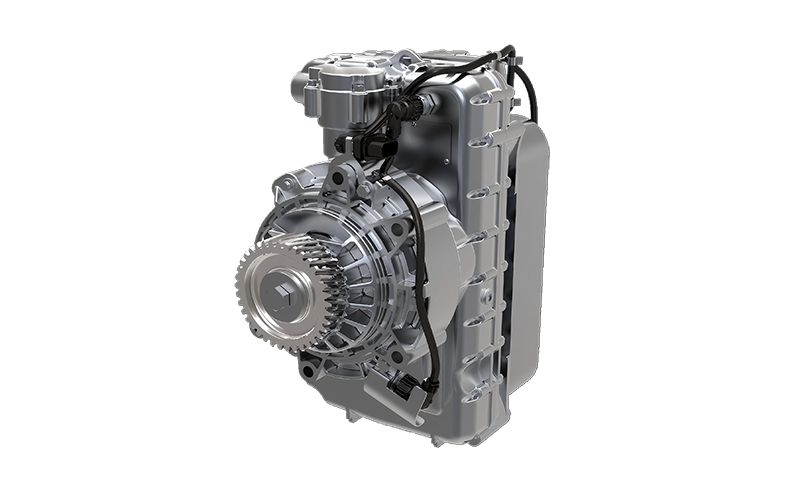

产品概述
Lightweight design weighing only 53 kg; High braking torque (4000 N·m) with superior low-speed braking performance; Forced lubrication for high reliability
产品优势
Compact structure with optimized dimensions, suitable for a wider range of vehicle models.
Lightweight design weighing only 53 kg.
High braking torque (4000 N·m) with superior low-speed braking performance.
Forced lubrication for high reliability.
Detachable stator and rotor minimize idling losses.
Automated production processes ensure high efficiency and consistent product quality.
产品规格
|
Maximum Braking Torque (Nm) |
4000 |
|
Drive Shaft Speed at Maximum Braking Torque (rpm) |
1100 |
|
Maximum Input Speed of Drive Shaft (rpm) |
2500 |
|
Weight (kg) |
53 |
|
Filling Oil Volume (L) |
6.5 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
