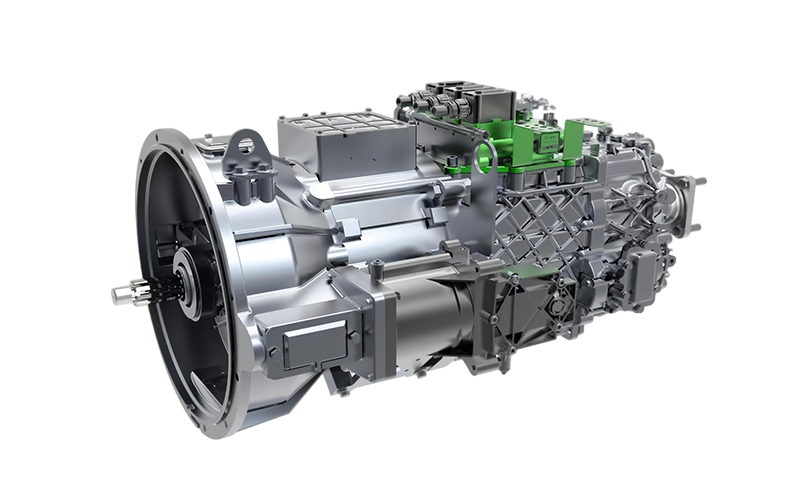

产品概述
Simple structure, low cost, high adaptability, and high reliability; Features hairpin motor and dedicated hybrid transmission technologies; Optimized balance between power performance and fuel economy.
产品优势
P2 hybrid transmission developed with an engine + clutch + motor + transmission architecture.
Simple structure, low cost, high adaptability, and high reliability.
Features hairpin motor and dedicated hybrid transmission technologies.
Fully proprietary control system (hardware and software) for rapid response.
Optimized balance between power performance and fuel economy.
产品规格
|
Maximum input torque (N·m) |
450 |
|
Max. speed (rpm) |
4000 |
|
Gear ratio range |
0.800-6.154 |
|
Weight (kg) |
170 |
|
Oil capacity (L) |
4 |
|
Motor Rated/Peak Power (kW) |
30/63 |
|
Motor Rated/Peak Torque (N·m) |
140/330 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
