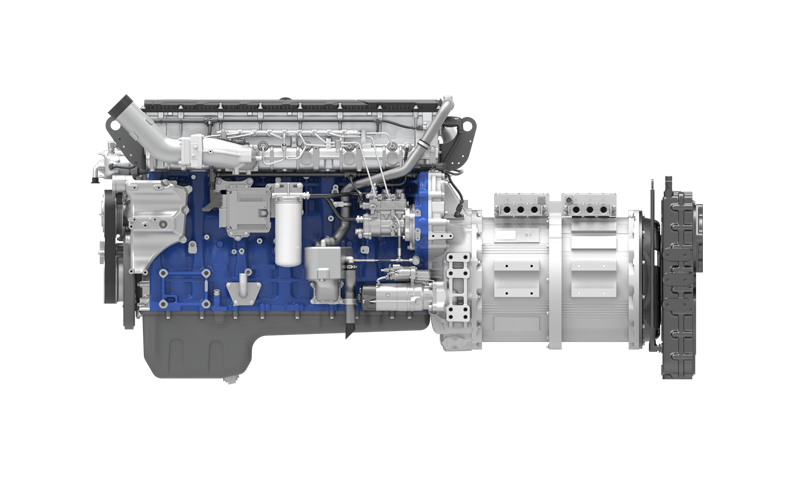

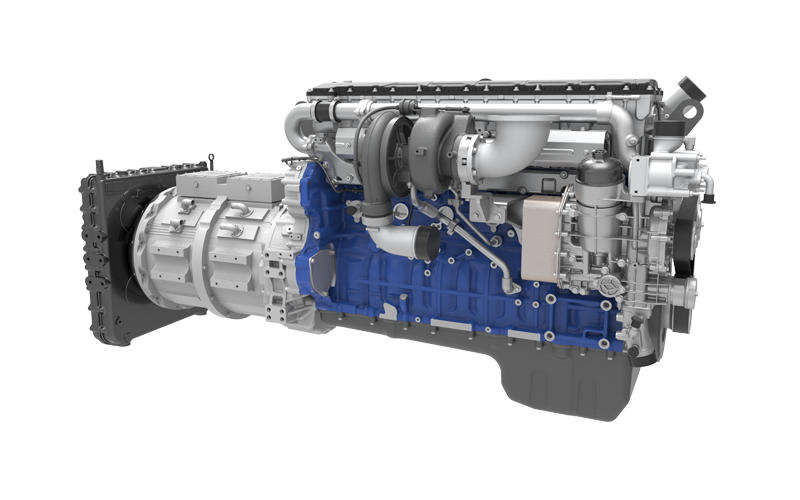

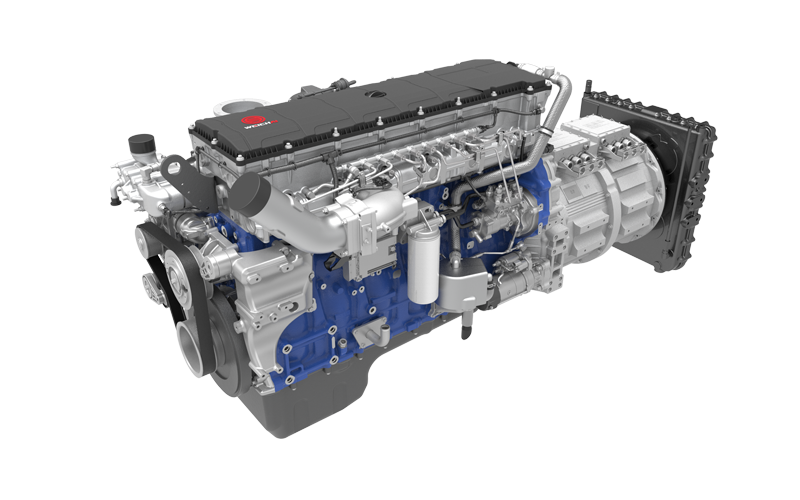

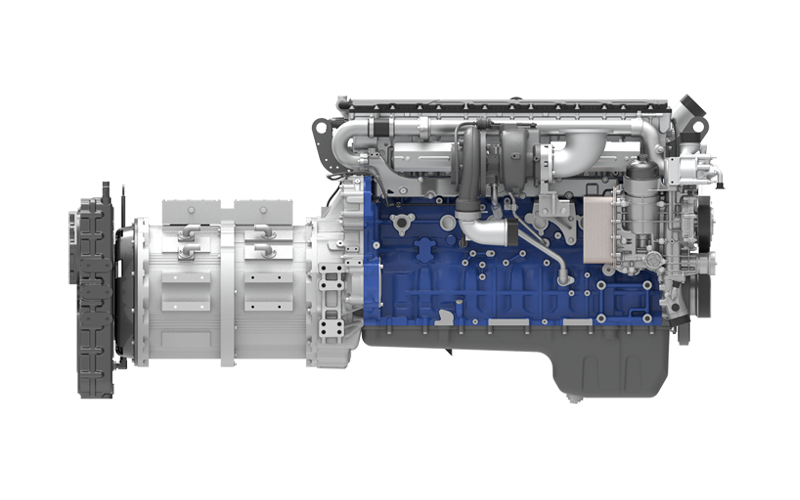

产品概述
Utilizing range-extended plus wheel-side electric drive technology to replace the torque converter and wet axle, optimizing the transmission path, increasing transmission efficiency, and achieving energy conservation and emission reduction.
产品优势
High transmission efficiency: By eliminating the hydraulic torque converter and shortening the driveline, higher transmission efficiency is achieved, contributing to energy conservation and emission reduction.
High reliability: Decoupling the engine from the wheels allows for the full utilization of the engine's fuel-efficient zone, thereby enhancing overall engine reliability.
Superior NVH: Compared with traditional loaders, it achieves better energy efficiency and emission reduction while improving NVH (Noise, Vibration, and Harshness) performance.
High operational efficiency: Compared with pure electric loaders, it enables continuous operation, significantly increasing customer productivity.
产品规格
| Assembly | Rated power (kW/Ps) | 400/544 |
| Assembly | Rated speed (r/min) | 1700 |
| Assembly | Power generation efficiency (kW·h/L) | ＞4.6 |
| Engine | Rated power (kW/Ps) | 566/770 |
| Engine | Rated speed (r/min) | 1900 |
| Motor system | Rated voltage (VDC) | 600 |
| Motor system | Rated power (kW) | 430 |
| Motor system | Rated speed (r/min) | 1600 |
| Motor system | Maximum efficiency | 94.50% |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power generation (kW) |
Target applications |
|
WPH17T-400-03 |
400 |
12t Hybrid Loader |
