WEICHAI

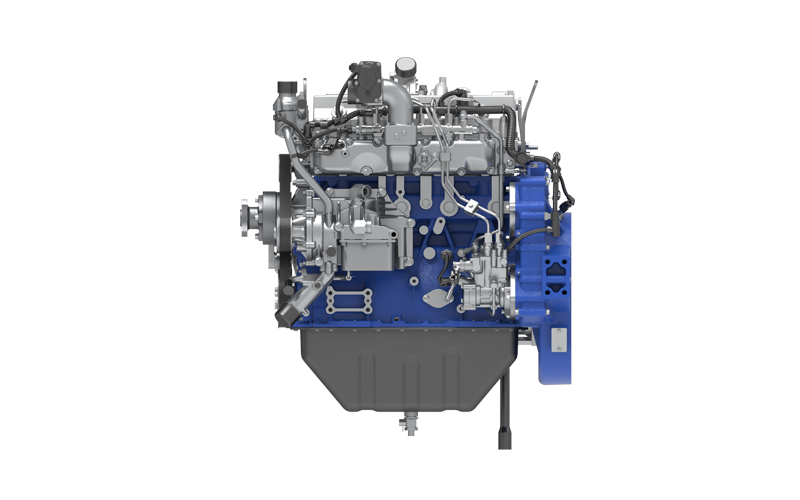

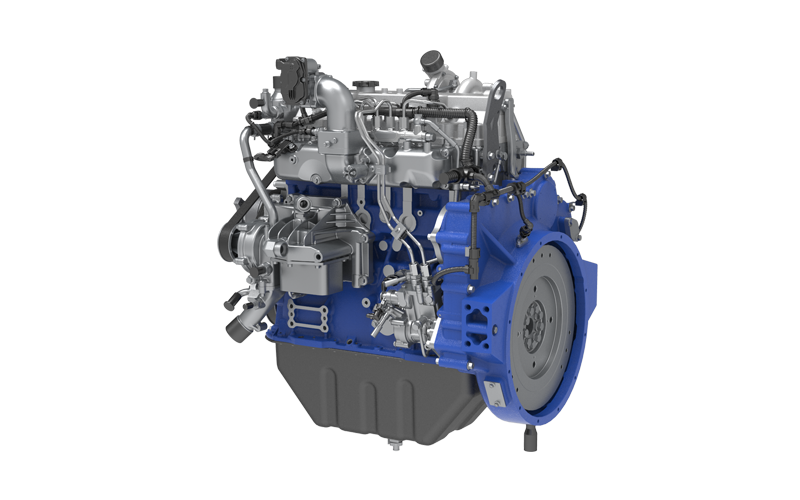

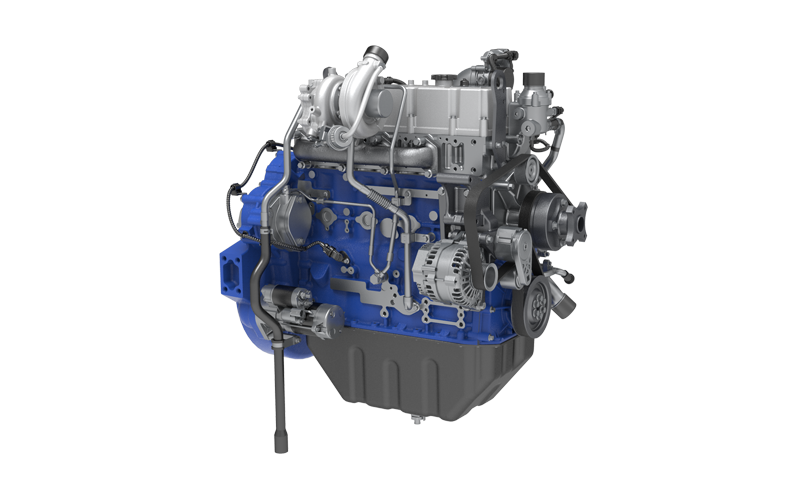

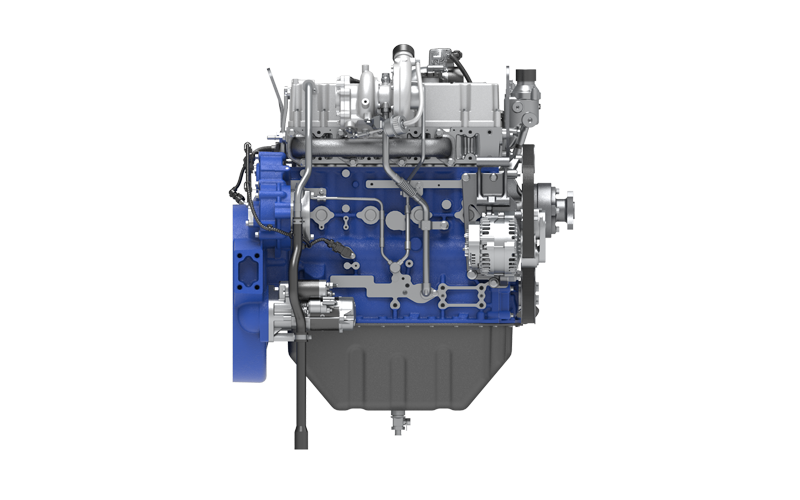

WP4.6N Engine for Excavator

Adapted for 15–20t excavators

110-129/150-175

功率范围 kW/Ps

800/1400-1600

最大扭矩/转速 N·m / r/min

产品概述

With a displacement of 4.58L and a power output ranging from 110 to 129 kW, it enhances performance and competitiveness, making it suitable for 15–20t excavators.

产品优势

Adaptability: Meets operational requirements from -25℃ to 50℃; Normal operation at an altitude of 4,500 m.

Power performance: High low-speed torque with a maximum of 800 N·m, strong acceleration, and a 5% improvement in power performance.

Economy: Expanded optimal fuel consumption map range, with fuel consumption under common operating conditions at least 5% lower than competing products.

Reliability: Features modular oil/fuel filters and an integrated cylinder head design, with a B10 life exceeding 20,000 h.

Comfort: Adopts rear gear train, noise-reducing flywheel housing, and a secondary balancing mechanism for low vibration and low noise.

产品规格

功率范围 kW/Ps
110-129/150-175
最大扭矩转速 N·m / r/min
800/1400-1600
排放标准
EU Stage ⅢA, EU Stage V, MAR 1
燃料
Diesel
发动机型式
In-line
气缸数
4
气门数
4
排量 L
4.58
进气方式
Turbocharged and intercooled
发动机尺寸(长×宽×高) mm
1041×624×978
G重量 kg

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP4.6NG167E301

123/2200

680/1600

4.58

EU Stage ⅢA, MAR 1

CR

20t excavator

4

WP4.6NG150E671A

110/2000

660/1400-1600

4.58

EU Stage V

DOC+DPF+SCR

15–20t excavator

4

WP4.6NG175E671

129/2000

800/1400-1600

4.58

EU Stage V

DOC+DPF+SCR

18–20t excavator

4
