产品概述

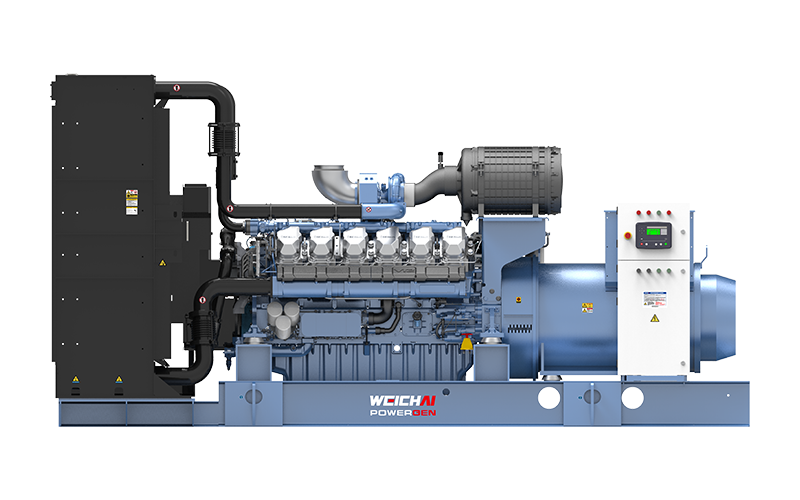

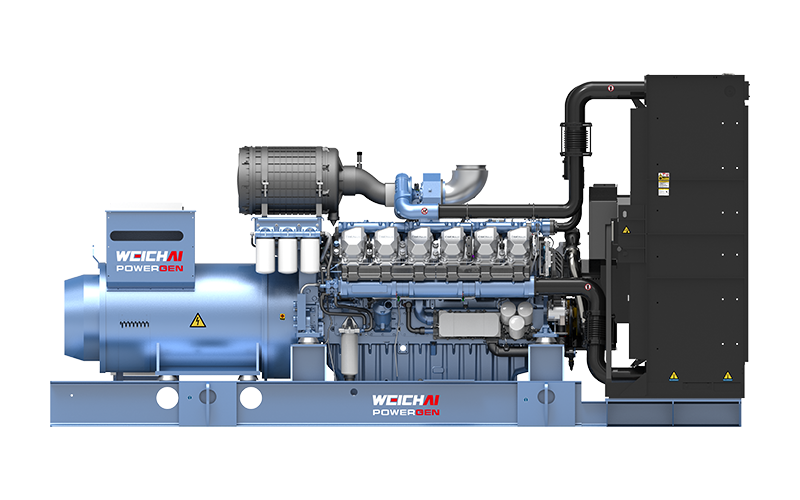

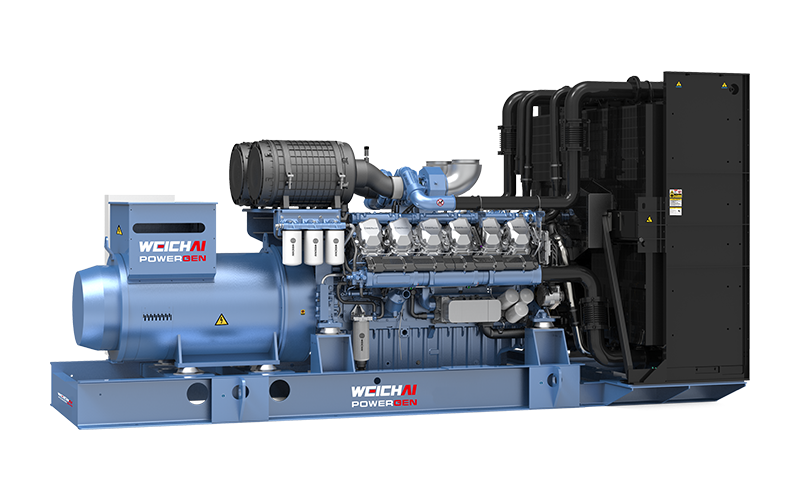

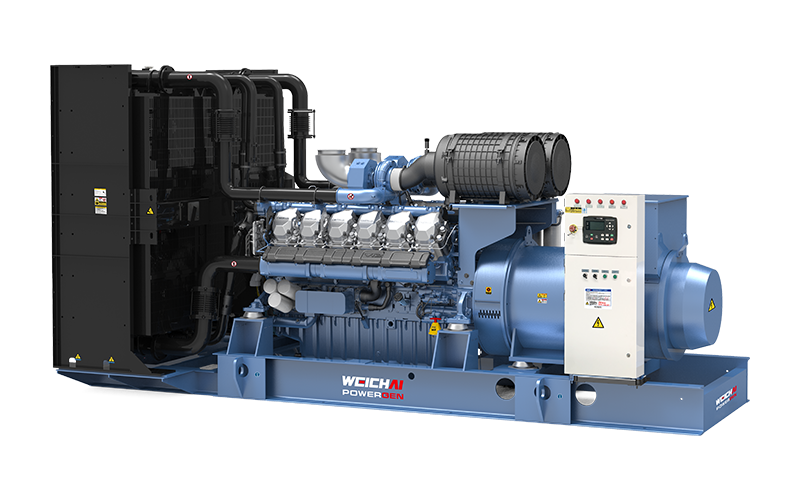

The 12M33 series diesel generator set is a new generation of high power density generator sets independently developed by Weichai, featuring a compact structure, superior fuel economy, and broad application prospects; Power output ranges from 900 to 1300 kW.
产品优势
Fuel System: High injection pressure ensures high engine power and excellent fuel atomization for superior fuel economy; specifically developed electronic control functions for generator set operating conditions meet various control and speed regulation requirements.
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG1250*7 |
1500 |
1250/1000 |
1125/900 |
12M33G1250/5 |
12 |
150×185 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG1400*7 |
1500 |
1375/1100 |
1250/1000 |
12M33G1400/5 |
12 |
150×185 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG1650*7 |
1500 |
1650/1300 |
1500/1200 |
12M33G1650/5 |
12 |
150×185 |
Electronic control |
Non-Road Emission Exempt |
|
WPG1100*76 |
1800 |
1375/1100 |
1250/1000 |
12M33G1100/6 |
12 |
150×185 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG1300*76 |
1800 |
1650/1300 |
1500/1200 |
12M33G1300/6 |
12 |
150×185 |
Electronic control |
Non-Road Emission Exempt |
