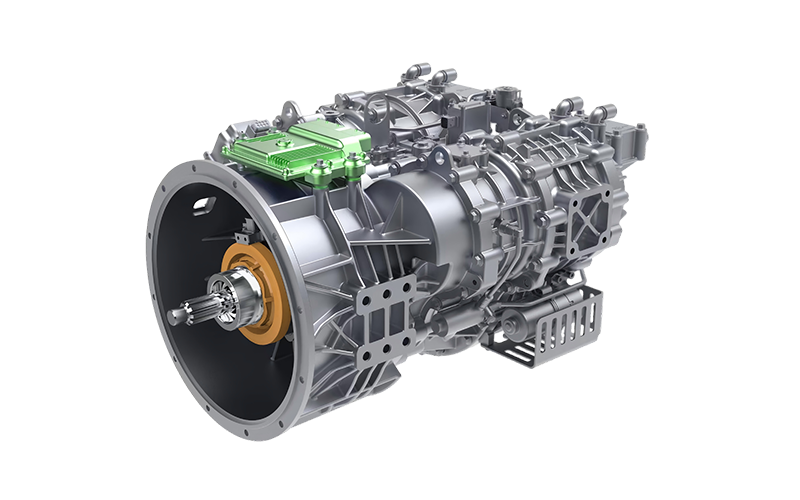

F2HD45-P

Suitable for medium and light trucks, etc.

450

最大输入扭矩 Nm

Drive Motor 130/268 Generator 130/268

电机额定/峰值扭矩 Nm

产品手册下载服务图标

服务支持

立即询价产品咨询

/Products & Businesses/Powertrain Systems/Components/Transmission/Hybrid

概述优势规格型谱表

产品概述

Utilizes motor stepless speed regulation to start the generator while in gear, ensuring faster and smoother transitions between pure electric and hybrid modes; Power-interruption-free operation with high fuel efficiency, achieving a comprehensive fuel savings rate of ≥25%.

产品优势

Dual-motor coaxial structure with a central clutch for a compact design.

Utilizes motor stepless speed regulation to start the generator while in gear, ensuring faster and smoother transitions between pure electric and hybrid modes.

Optimizes vehicle performance across multiple operating modes by combining the dual-motor system with the internal combustion engine (Pure Electric Mode, CVT Mode, OD Mode, etc.).

Ensures continued vehicle operation even in the event of high-voltage system failure.

Power-interruption-free operation with high fuel efficiency, achieving a comprehensive fuel savings rate of ≥25%.

产品规格

Rated speed (rpm)	3800
Gear ratio range	1.000-3.027
Planetary gear ratio	2.610
Weight (kg)	217
Oil capacity (L)	5.5
Motor Rated/Peak Power (kW)	Drive motor 58/115 Generator 58/115
Motor Rated/Peak Torque (N·m)	Drive Motor 130/268 Generator 130/268

备注：产品参数及图片仅供参考；如有变动，不另行通知。
