WEICHAI

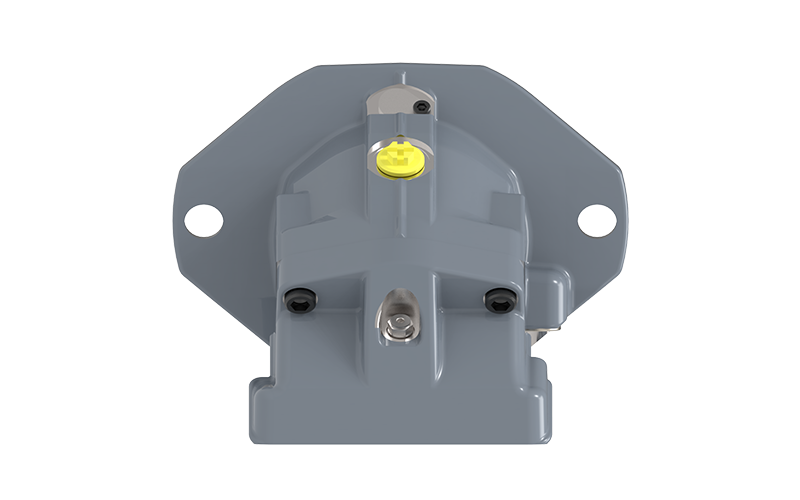

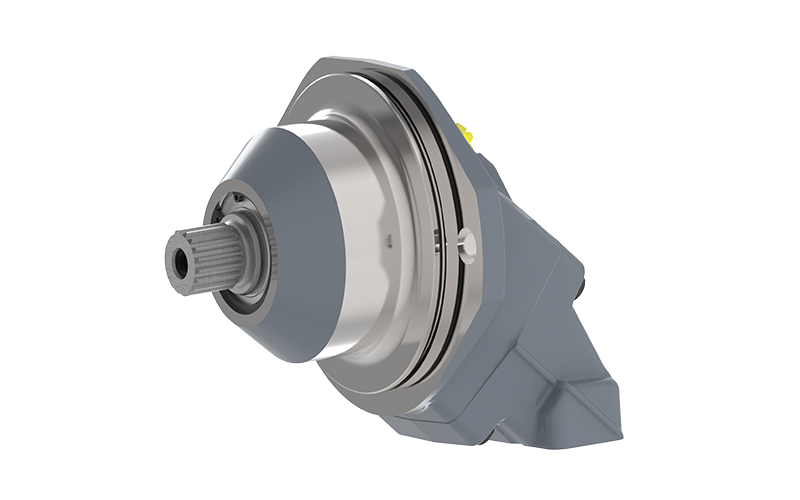

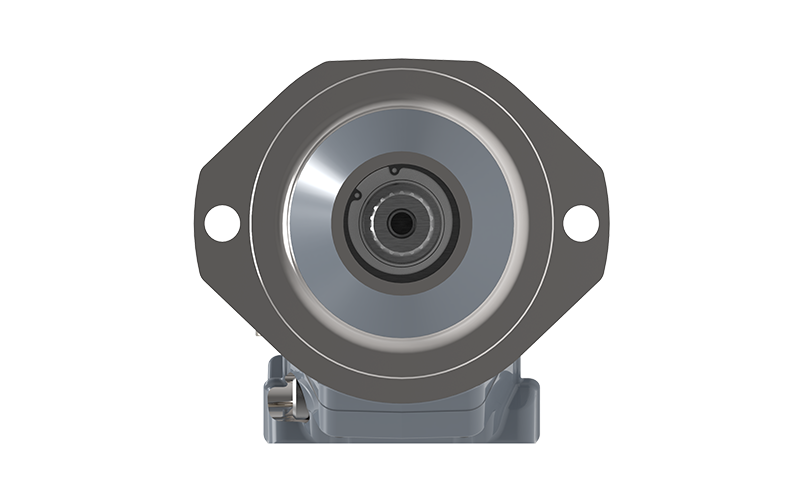

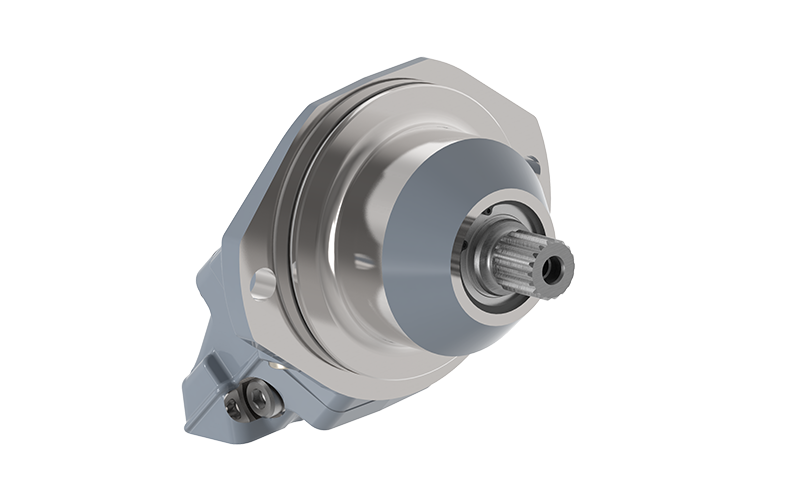

CMF Series Bent-axis Fixed Motor

Compact footprint, high speed.

Adapted for rotary drilling rigs, etc.

450

额定压力 bar

80

最大排量 cc/rev

产品概述

With the development of new-generation motor products, we offer customers a more diverse selection of high-quality hydraulic system components. The CMF fixed-displacement bent-axis motor features high load capacity and high speed. It utilizes standard interfaces, allowing for deployment across various application scenarios without additional components. Bent-axis motors improve cost-efficiency by reducing product weight and power losses.

产品优势

High speed.

High power density.

Very compact dimensions.

产品规格

Parameters

Value

Specification

80

Max. displacement (cc/rev)

80

Max. operating speed (100% duty cycle, max. displacement) (rpm)

4500

Max. operating speed (intermittent, max. displacement) (rpm)

5000

Rated pressure (bar)

450

Max. pressure (instantaneous) (bar)

500

Allowable case pressure (bar)

2.5

Torque at rated pressure (N·m)

547

Theoretical power (kW)

258

Weight (approx.) (kg)

23

备注:产品参数及图片仅供参考;如有变动,不另行通知。
