产品概述

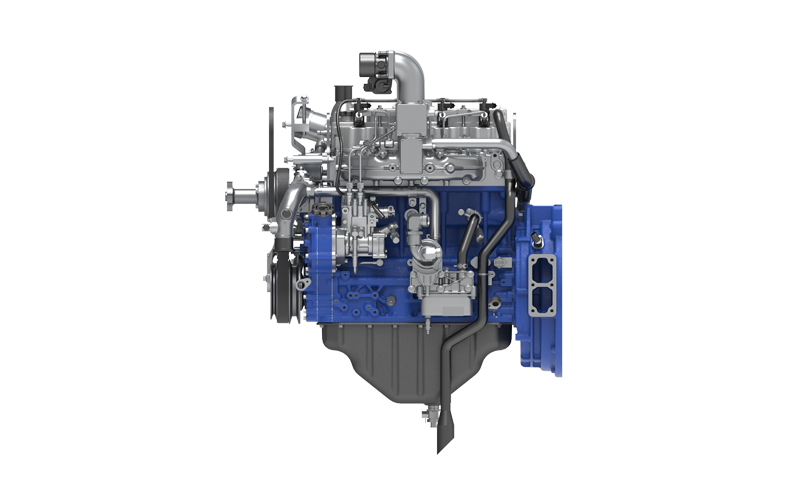

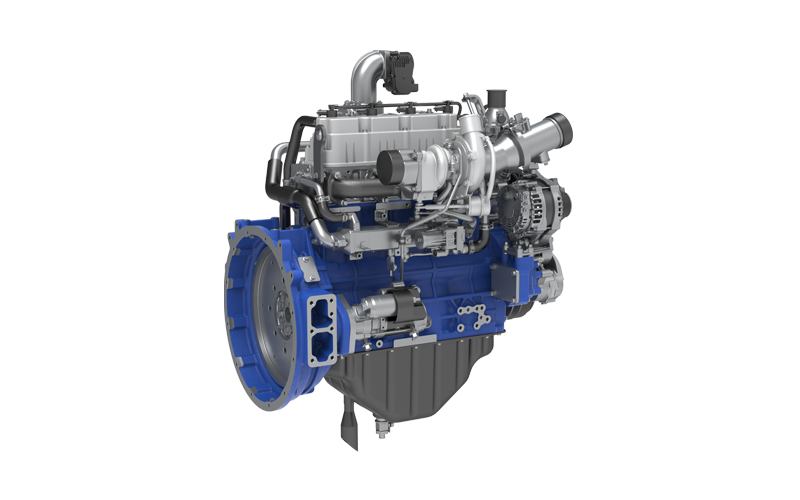

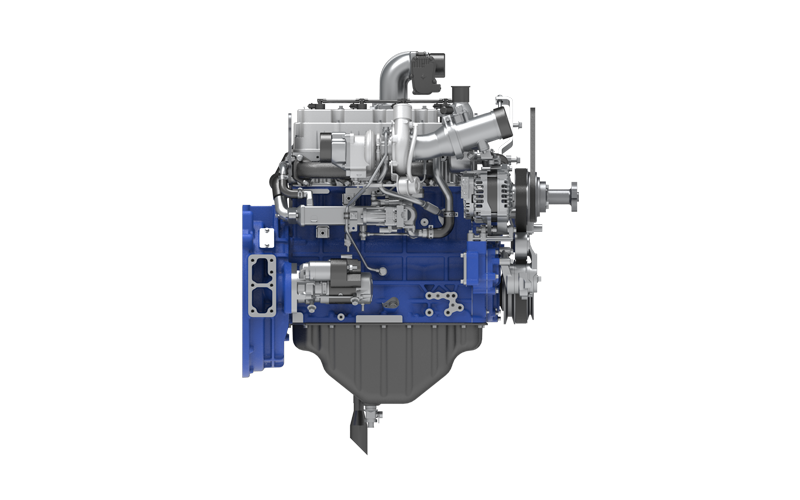

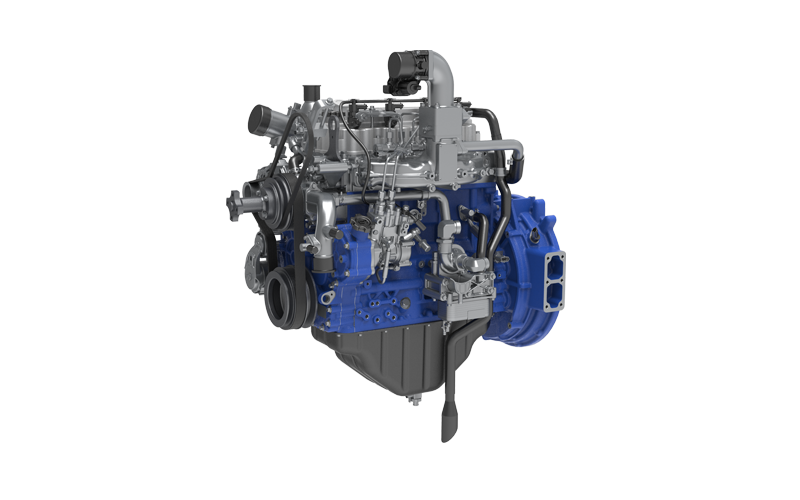

WP3.6N modular design with a single-cylinder, four-valve structure, enhancing power and economy with strong adaptability; Power output ranges from 82.5 to 105 kW, suitable for 9–15t excavators.
产品优势
Power and economy: Four-valve design provides strong power, with base fuel consumption improved by 4–9 g/kW·h and overall machine fuel savings of 15%.
Strong adaptability: Front and rear power take-offs (PTOs) meet requirements for 5000 m high-altitude operation.
Clean appearance: Platform-based design with modular component layout, high integration, neat and aesthetically pleasing.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP3.6NG112E301 |
82.5/2200 |
465/1600 |
3.58 |
EU Stage ⅢA |
CR |
10–13t excavator |
4 |
|
WP3.6NG136E301 |
100/2200 |
550/1600 |
3.58 |
EU Stage ⅢA |
CR |
13–15t excavator |
4 |
|
WP3.6NG100E681 |
74/2000 |
450/1400-1600 |
3.58 |
EU Stage V |
EGR+DOC+DPF+SCR |
9–10t excavator |
4 |
|
WP3.6NG125E680 |
92/2000 |
500/1400-1600 |
3.58 |
EU Stage V |
EGR+DOC+DPF+SCR |
13t excavator |
4 |
|
WP3.6NG140E680 |
103/2000 |
550/1400-1600 |
3.58 |
EU Stage V |
EGR+DOC+DPF+SCR |
13–15t excavator |
4 |
