WEICHAI

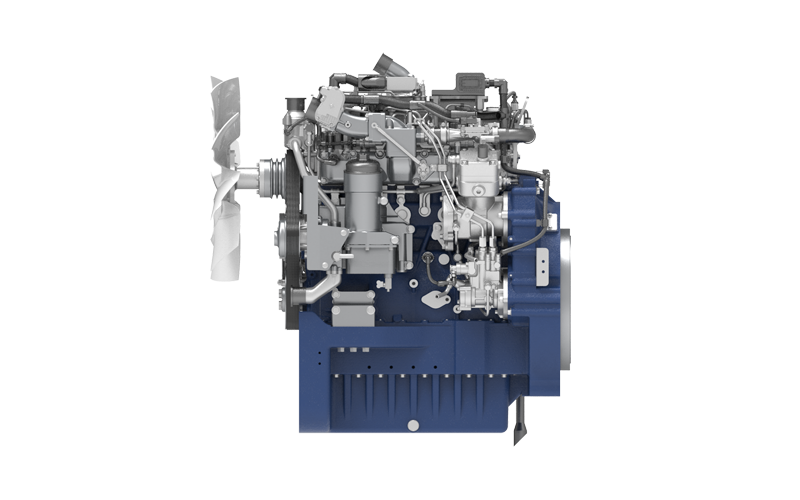

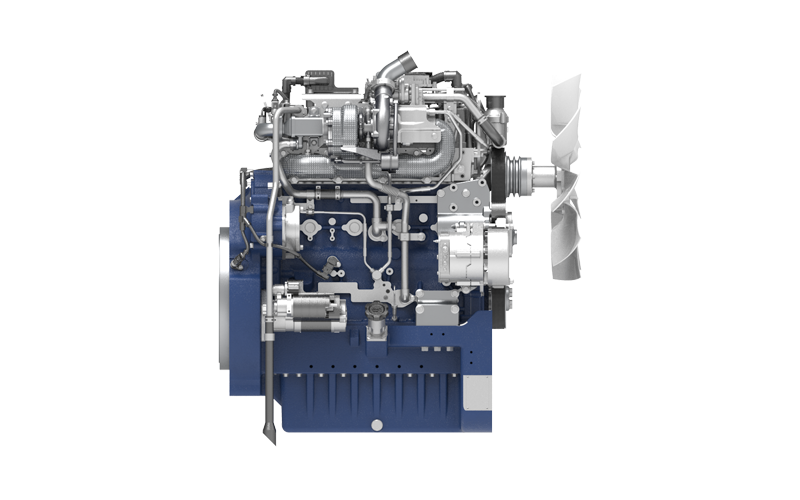

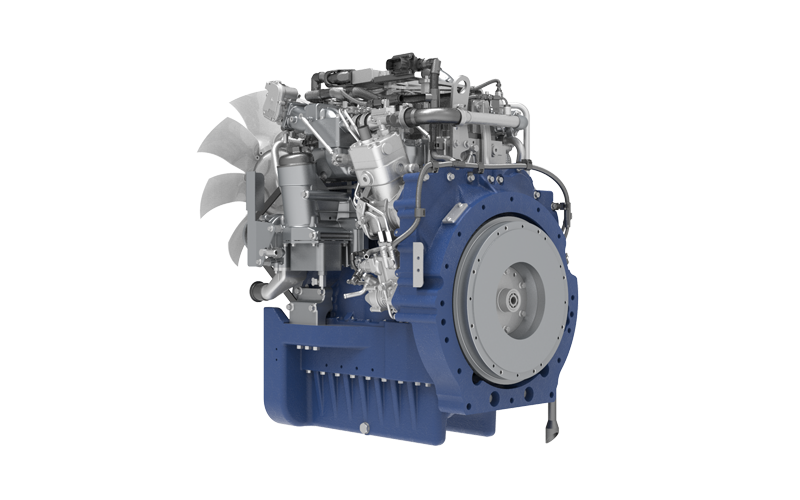

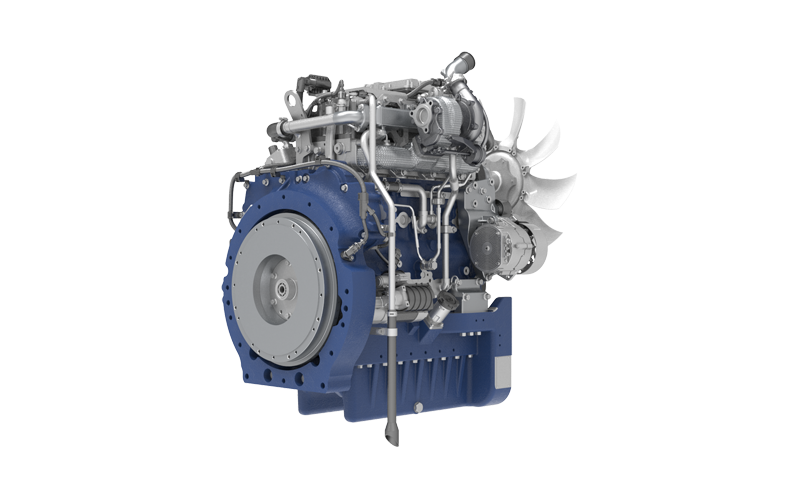

WP4.6N Engine for Tractor

Adapted for 90–160 PS wheeled tractors.

76-118/90-160

功率范围 kW/Ps

725/1600

最大扭矩/转速 N·m / r/min

产品概述

WP4.6N family-based design, featuring a four-valve structure for enhanced power, fuel economy, and high adaptability; Power range of 76–118kW,compliant with EU Stage IIIA/Stage V emission standards, suitable for 90–160 PS tractors.

产品优势

Enhanced Reliability: High-spec configuration with a low failure rate. Global sourcing of components from premium domestic and international suppliers effectively improves reliability and reduces failure rates. The dust filtration system with ≥93% efficiency adapts to dusty conditions and various soil types, extending the service interval of the primary filter and reducing customer operating costs. Selection of premium electrical system suppliers effectively reduces electrical system failures.

Higher Efficiency: Robust power and high operational efficiency. Features high-speed constant power, high low-speed torque, and excellent acceleration. High torque reserve accommodates different soil types and agronomic requirements, ensuring high operational efficiency.

Greater Economy: Precise fuel control and low fuel consumption. Optimized injectors and calibrated ECU data, through flexible fuel injection pressure control and multiple injection strategies, reduce fuel consumption and enhance working efficiency.

Greater Comfort: Low vibration and noise. High-flow water pumps and low-speed fans effectively reduce cabin noise and mitigate operator fatigue. Electronic control system provides stable injection pressure, fast response, minimal fluctuation, and reduced combustion noise.

Smarter: Real-time monitoring and remote control. Financing management allows for real-time positioning and payment reminders for machinery under installment plans. Fuel consumption management allows for real-time recording, monitoring, and storage of instantaneous and comprehensive fuel consumption data. Speed management allows for real-time recording, monitoring, and storage of actual vehicle speed. Location management allows for precise positioning and tracking of agricultural machinery. Anti-theft security enables tracking of stolen machinery and remote engine locking. Anomaly alerts provide real-time monitoring of engine operating parameters and proactive warnings for potential faults. Remote diagnostics and automatic fault alarms enable remote fault analysis and troubleshooting for the engine.

Enhanced adaptability: Flexible performance in complex environments. Capable of operating in diverse environments, including high temperatures, dusty conditions, and varying soil types. Superior cold-start performance, capable of starting reliably at -10°C without auxiliary aids. Fully sealed design, tailored for paddy field tractors.

产品规格

功率范围 kW/Ps
76-118/90-160
最大扭矩转速 N·m / r/min
725/1600
排放标准
EU Stage IIIA/ Stage V
燃料
Diesel
发动机型式
In-line
气缸数
4
气门数
4
排量 L
4.6
进气方式
Turbocharged and intercooled
发动机尺寸(长×宽×高) mm
1013×688×1097
G重量 kg
620

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP4.6NG129E301A

94.8/2200

562/1600

4.6

EU Stage IIIA

CR

Tractor

4

WP4.6NG144E301

106/2200

550/1600

4.6

EU Stage IIIA

CR

Tractor

4

WP4.6NG150E301

110/2200

606/1400-1600

4.6

EU Stage IIIA

CR

Tractor

4

WP4.6NG104E670

76/2400

410/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG114E670

84/2400

450/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG115E670

84.5/2200

465/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG124E670

91/2400

490/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG134E670

98.5/2400

530/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG134E671

98/2200

545/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG144E670

106/2400

570/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG150E670

110/2200

595/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4

WP4.6NG160E670

118/2200

725/1600

4.6

Stage V

CR+DOC+DPF+SCR

Tractor

4
