产品概述

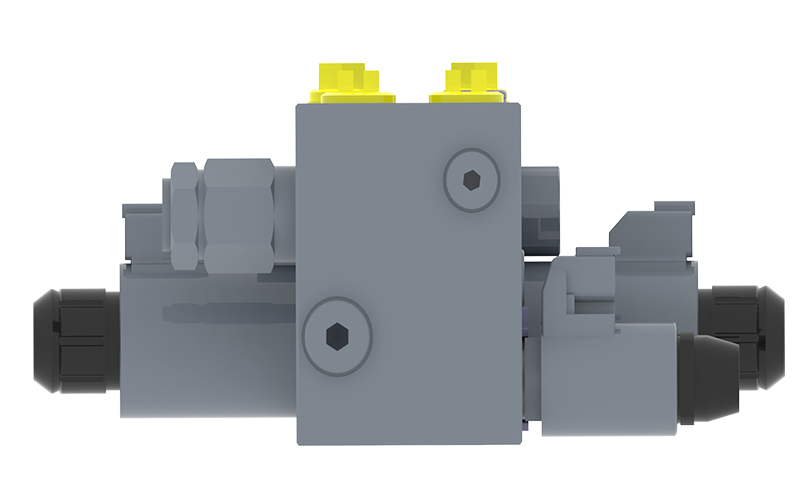

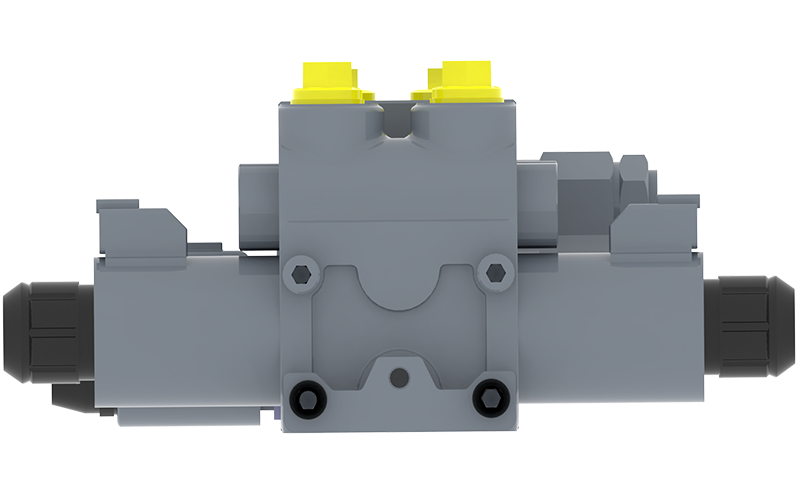

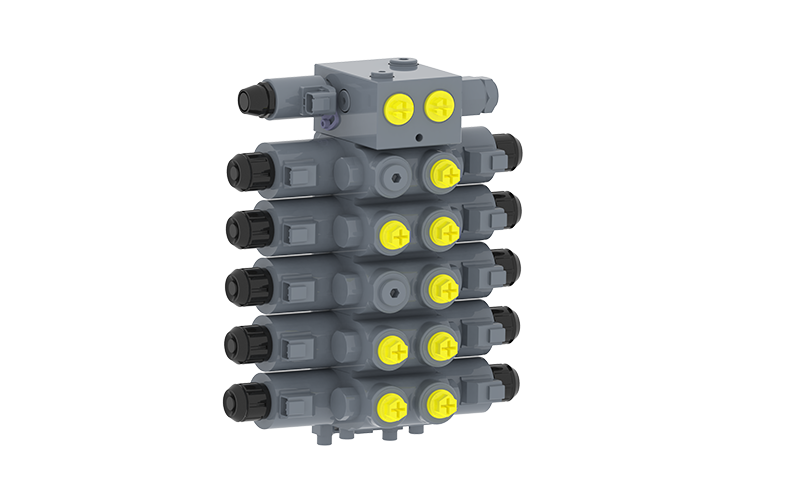

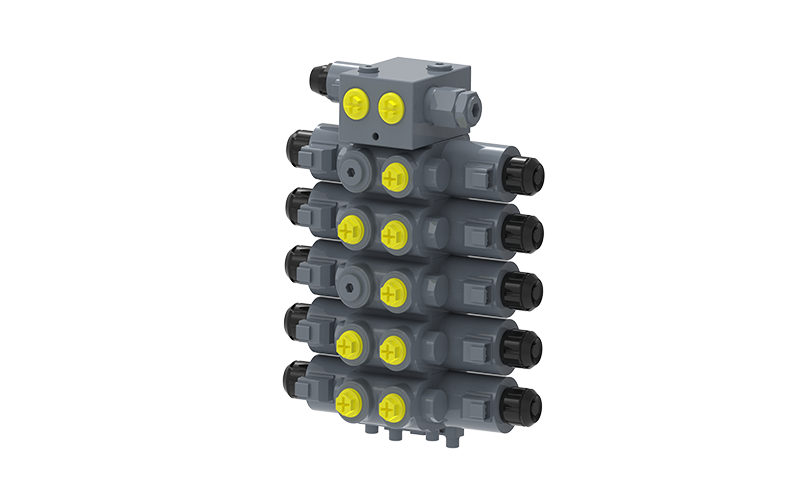

The ACV multi-way directional control valve is specifically designed for agricultural combine harvesters, capable of controlling compound actions of multiple actuators. Features full electronic control, IP67 protection, and high-strength material construction to ensure highly reliable, responsive operation in harsh field conditions. Built-in hydraulic locks for precise control of header lifting/lowering and variable-speed drum adjustment; Integrated safety relief valves to prevent hydraulic system damage due to overloads. Sectional modular design to satisfy diverse user configuration requirements.
产品优势
High control precision and rapid response.
High product reliability.
Zero leakage under load-holding conditions.
Modular design.
产品规格
|
Parameter Items |
30 |
50 |
|
Model Specification |
30 |
50 |
|
Rated flow (L/min) |
30 |
50 |
|
Rated pressure (bar) |
155 |
155 |
|
Peak pressure (bar) |
175 |
175 |
|
Supported number of sections |
Based on requirements (1‑6 pieces achievable) | Based on requirements (1‑6 pieces achievable) |
|
Weight (approx.) (kg) (drained of internal oil) |
31 (6-pieces) |
36 (6 pieces) |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
