Family-series products, adaptable to various industrial power segments.
Suitable for high-pressure cleaning, low-pressure water pumps, hydraulic pump stations, air compressors, fire-fighting pumps, and mud pumps
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

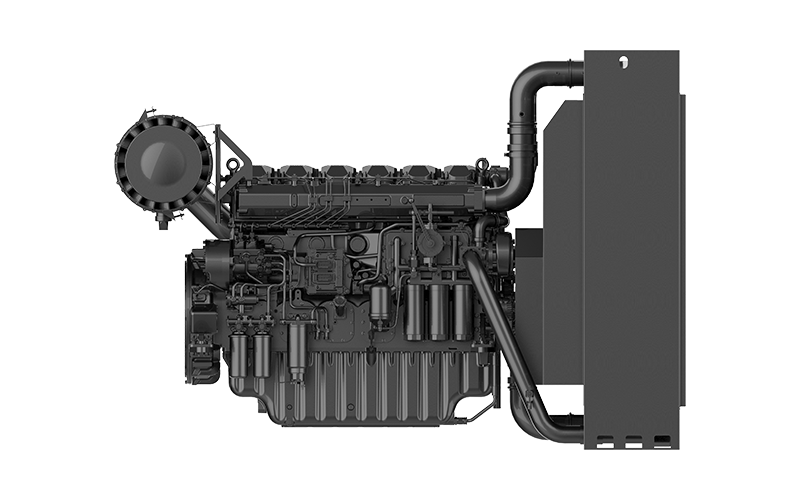

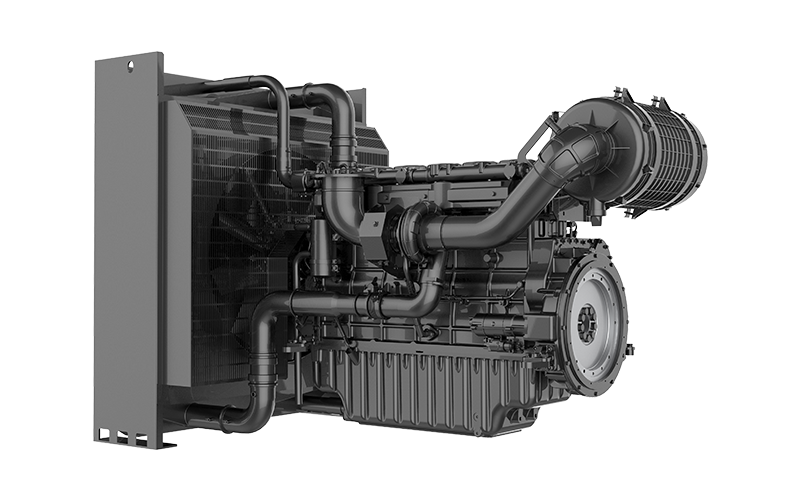

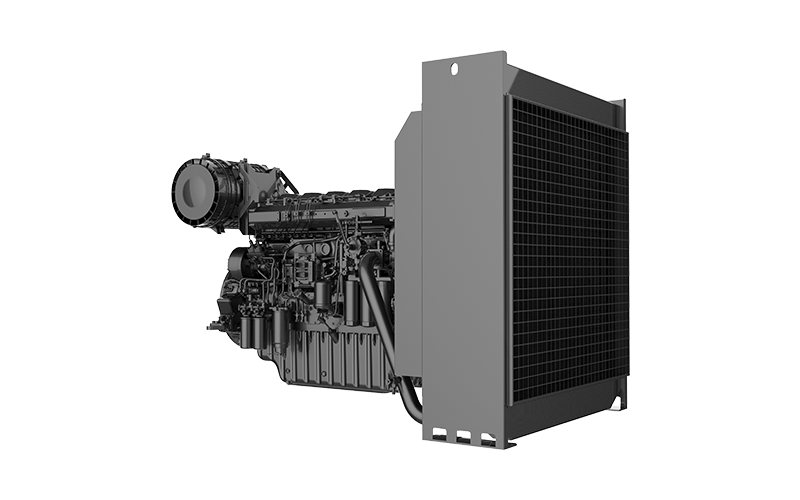

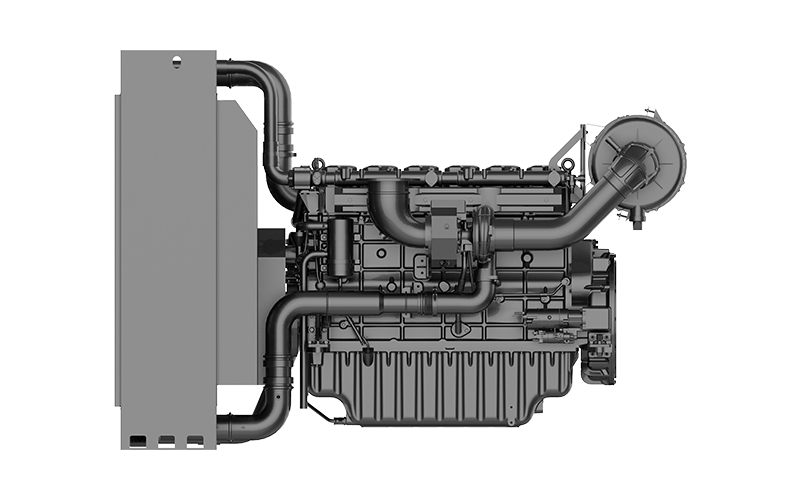

The 6M33 engine features a 19.6L displacement with a power range of 565-670 kW and is applicable to industries such as high-pressure cleaning, low-pressure water pumps, hydraulic pump stations, air compressors, fire-fighting pumps, and mud pumps.
产品优势
High reliability: The cylinder block features a cast iron, grid-type structure for enhanced strength; Crankshaft made of high-strength alloy steel.
High economy: Equipped with high-flow oil filters as standard to ensure superior filtration precision, providing cleaner fuel and oil, and reducing operating costs.
Easy maintenance: Inspection windows on both sides of the engine block and a family-style design facilitate servicing and maintenance
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Displacement (L) |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Governing System |
Emission standard |
|
6M33V1D0 |
19.6 |
565/1800 |
3200/1300-1700 |
Mechanical governor |
Zero emission |
|
6M33V2D0 |
19.6 |
565/1900 |
3400/1300-1600 |
Electronic control |
Zero emission |
|
6M33V2D0 |
19.6 |
565/1900 |
3418/1500 |
Electronic control |
Zero emission |
|
6M33V4D0 |
19.6 |
670/1900 |
3920/1300 |
Electronic control |
Zero emission |
