WEICHAI

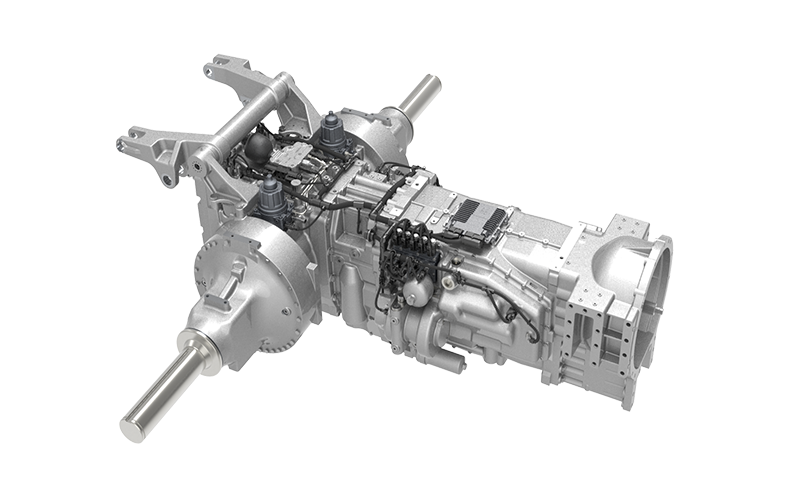

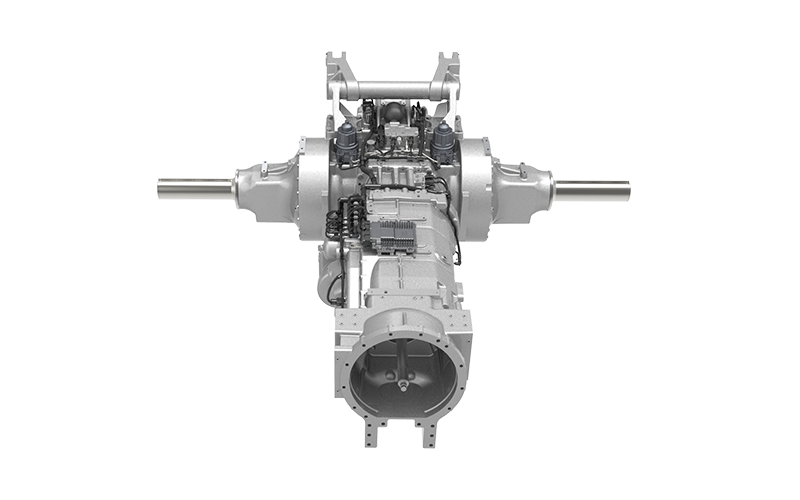

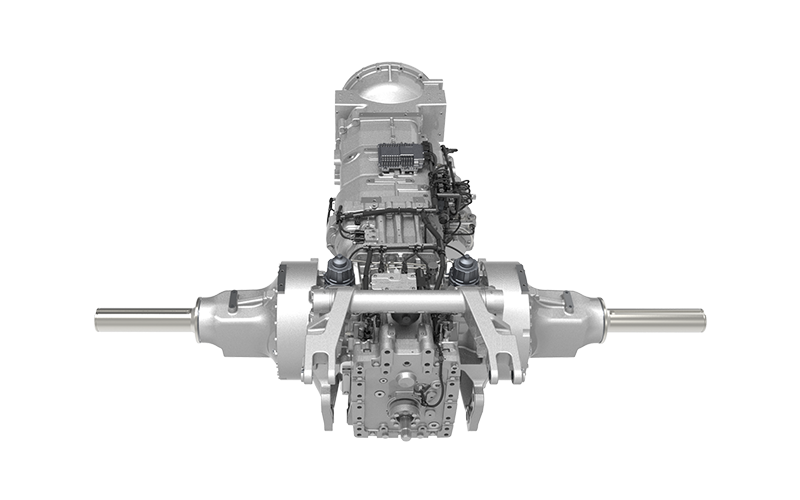

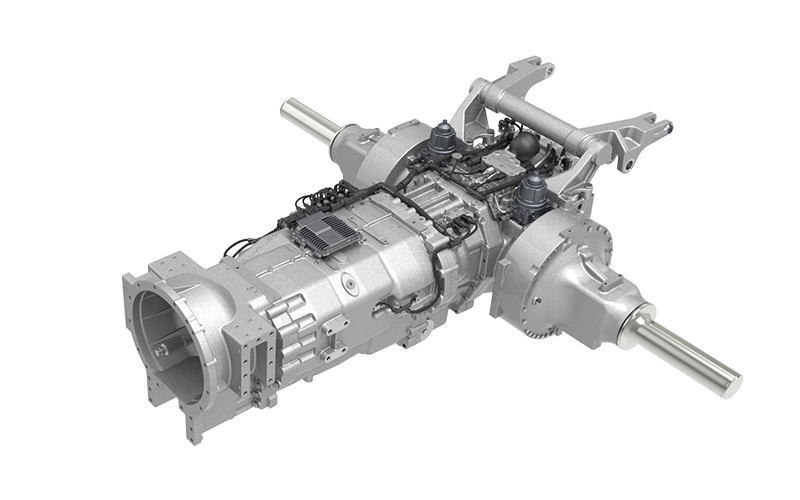

Hydro-Mechanical Continuously Variable Transmission Axle

High operational efficiency, automatic shifting, and comfortable operation.

Tractor applications

2590

最大输入扭矩 N・m

124000

最大输出扭矩 N・m

产品概述

Weichai HMCVT series products feature independent electronic control logic and integrate various tractor operating modes including plowing, seeding, PTO, and transport, providing customers with intelligent assisted operation and fully autonomous driving features to improve productivity. Optimized for both domestic and international operating conditions, the structural load-bearing and lifting capacities are verified through extensive field testing to ensure long service life and high reliability, supporting customers in developing high-end smart agricultural equipment.

产品优势

Uninterrupted power delivery for high operational efficiency.

Automated gear shifting for precise control.

High power density with rapid response.

Intelligent control for enhanced operator comfort.

产品规格

Specifications

220

240

260

280

340

500

Vehicle Layout

Load-bearing

Load-bearing

Load-bearing

Load-bearing

Load-bearing or Articulated

Framed Articulated

Maximum Input Torque (N·m)

1040

1100

1100

1350

1400

2590

Maximum Output Torque (N·m)

76000

87000

87000

92000

119000

6646

Maximum Forward Speed (kph)

40

40

40

40

40

50

Maximum Reverse Speed (kph)

28

28

28

28

28

40

Rated Power

162

177

191

206

250

367

Maximum Permissible Operating Weight

12000

14000

14000

16000

18000

28000

Approximate Dead Weight

2250

2550

2550

3200

3200

1800

备注:产品参数及图片仅供参考;如有变动,不另行通知。
