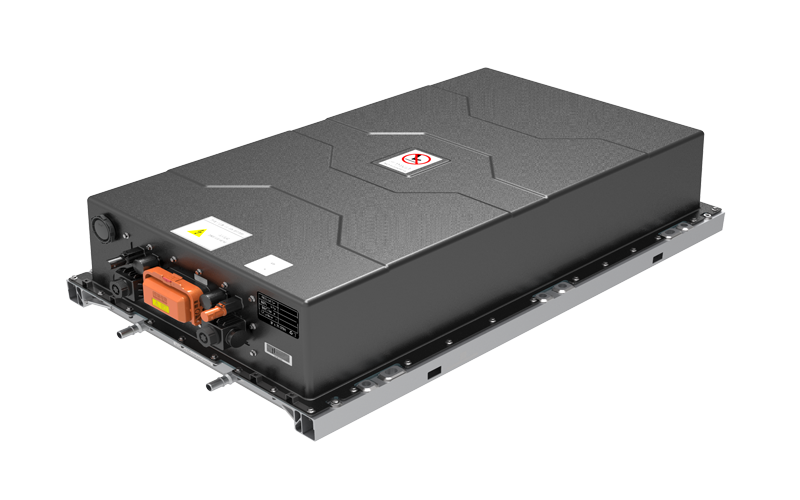

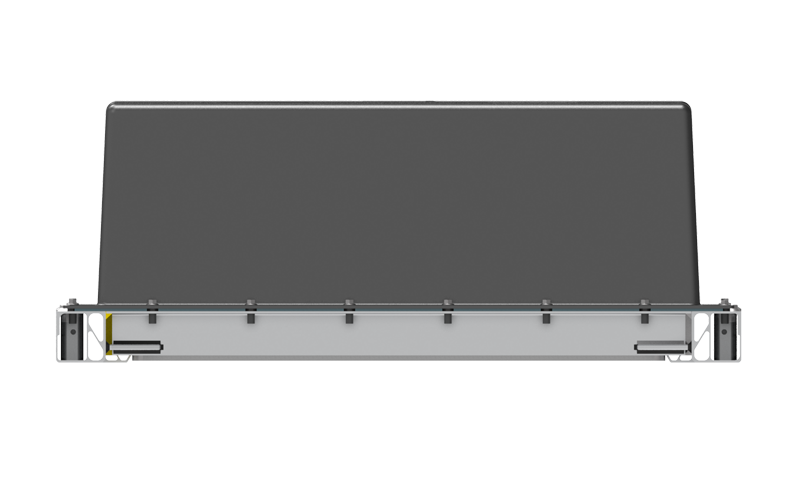

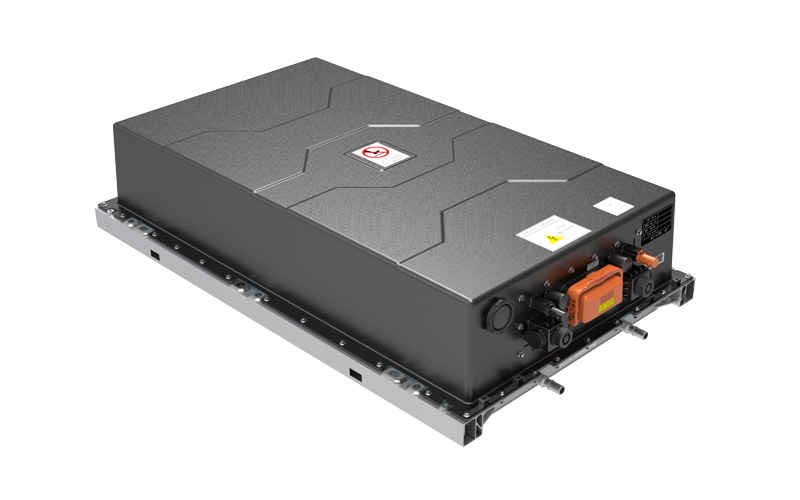

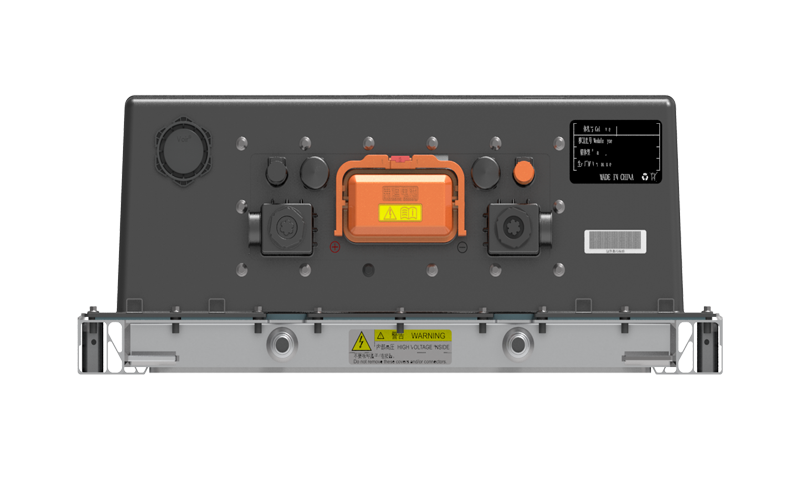

Bus Power Battery H38

电量覆盖 kWh

额定电压 v

产品手册下载服务图标

概述优势规格型谱表

产品概述

A battery system with comprehensive energy coverage and high mobility

产品优势

Configuration: Multiple installation options available.

Simplified maintenance: High assembly efficiency and easy maintenance.

Improved vehicle mobility: High ground clearance ensures superior vehicle mobility.

Comprehensive energy coverage: Energy capacity ranges from 144 kWh to 600 kWh, offering superior scalability and flexible wheelbase adaptation.

产品规格

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Nominal Voltage (V)	Rated Capacity (Ah)	Energy per Pack (kWh)	Continuous Charging Rate	Continuous Discharging Rate	Weight (kg)	Overall Dimensions (mm)	Applications
H38	153.6	245.5	38	1.2C	1.2C	225±6.5	1050×627×240	Bus
