450kW Range Extender for Mining Trucks

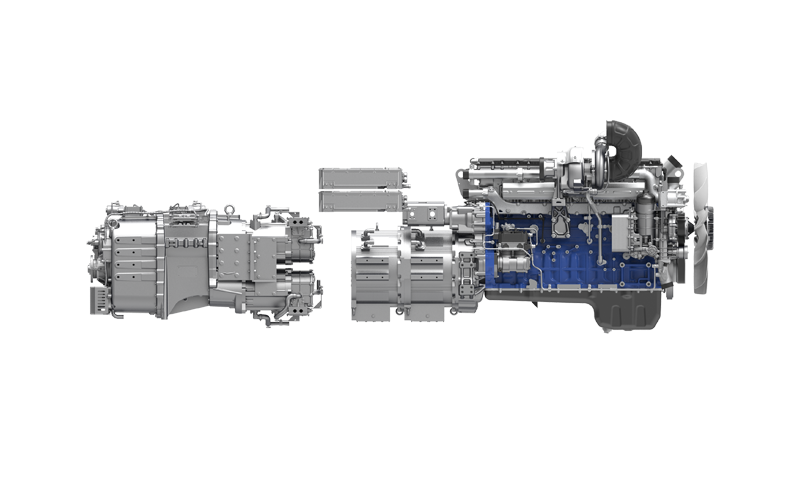

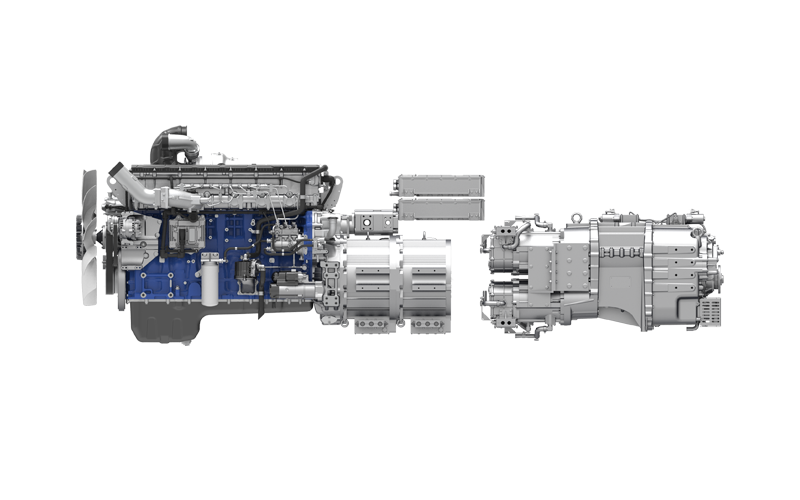

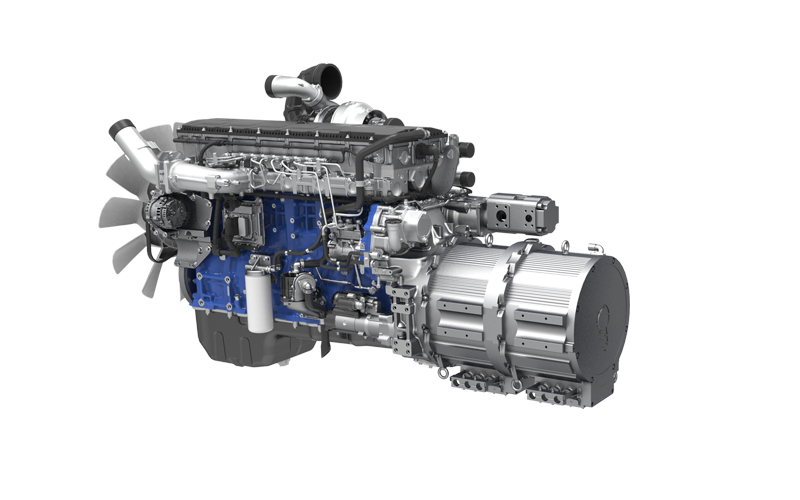

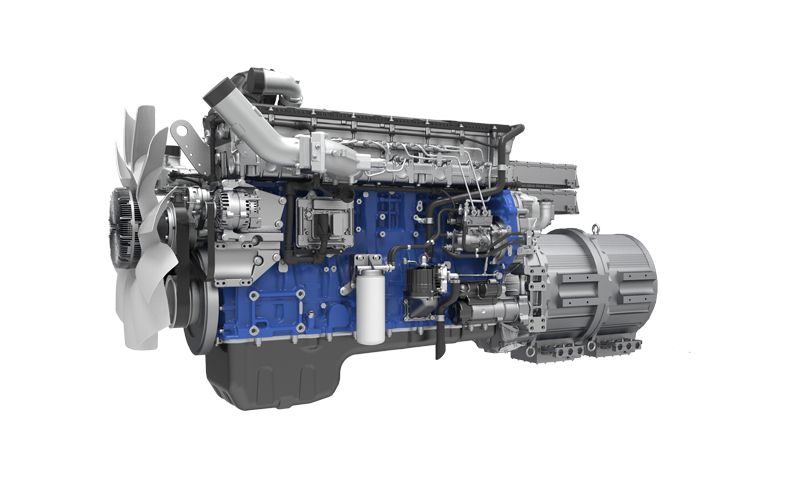

Powered by a WP17T fuel-efficient engine + generator + drive motor + Zhu-chi 4-speed transmission + 103 kW·h lithium iron phosphate power battery, the system reduces vehicle costs and fuel consumption through hardware enhancements and strategy optimization.

Power performance: Powered by a WP17T engine, with a rated generation power of 400 kW, outperforming competing products and effectively improving the vehicle's electrical power supply capacity; Supports multiple control modes including single-point, multi-point, and power-following to adapt to complex operating requirements.

Economic efficiency: The optimal power generation efficiency reaches 4.6 kW·h/L, with a peak generation power of ≥450 kW, meeting customer requirements for heavy-load conditions and reducing user operating costs.

Control: The vehicle controller and range extender controller feature an integrated design with deeply fused control strategies, reducing transmission losses and achieving superior control performance.

Structure/Maintenance: The product employs a split clutch/coupling structure, which facilitates maintenance and heat dissipation, enhancing system stability.
