产品概述

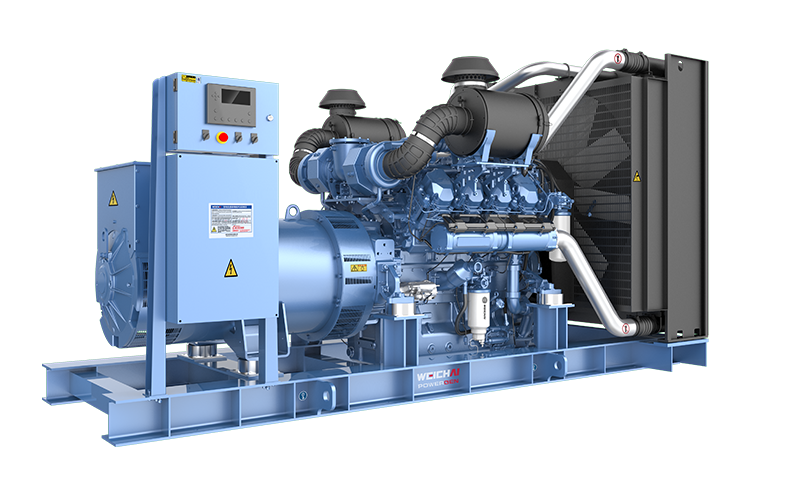

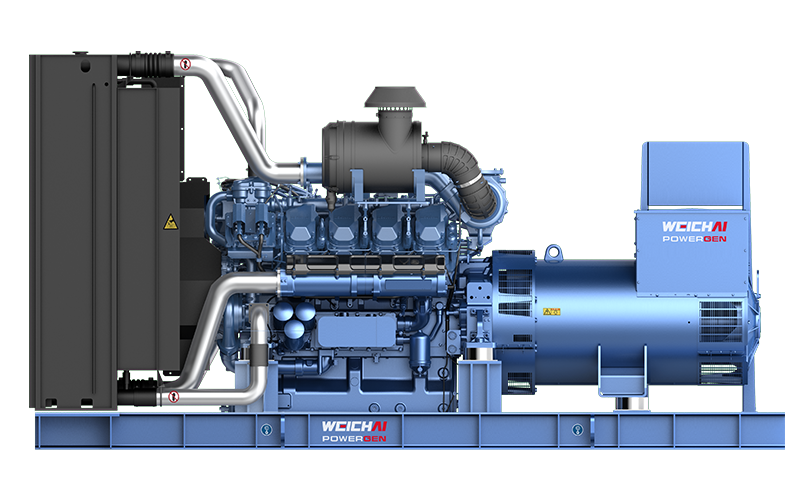

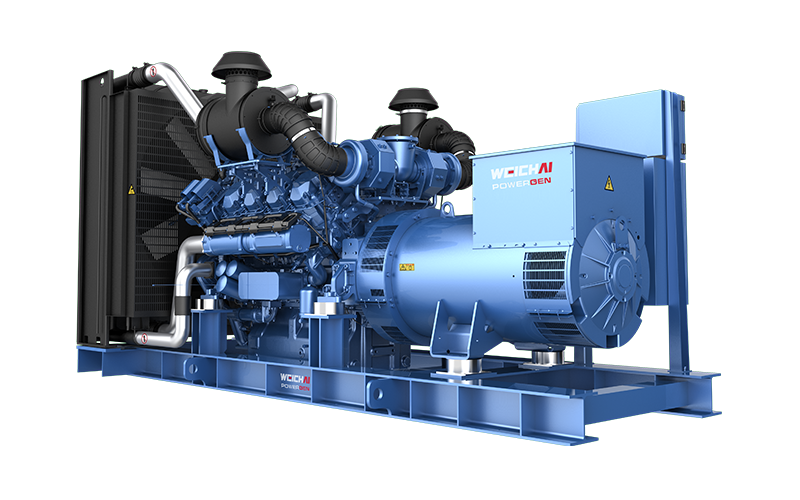

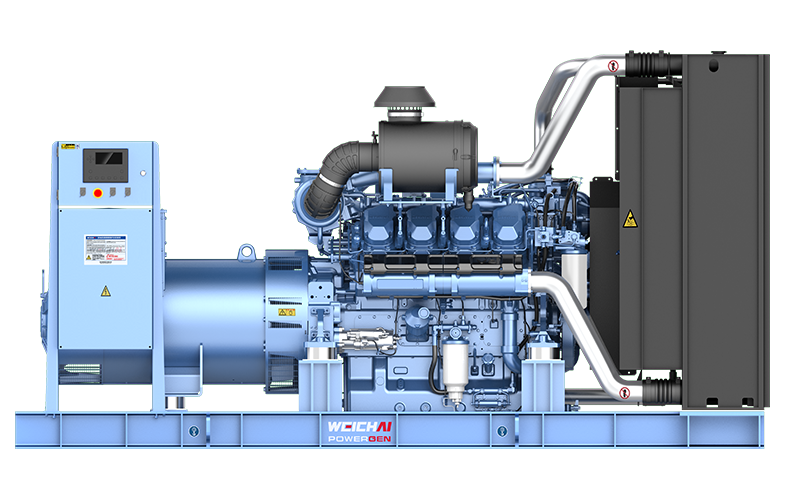

The 12M26 series diesel generator set is a new generation of high power density generator sets independently developed by Weichai, featuring a compact structure and superior fuel economy; Generator sets with a power output range of 720-1000 kW.
产品优势
Fuel System: High injection pressure ensures high engine power and excellent fuel atomization for superior fuel economy
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG1000*7 |
1500 |
1000/800 |
900/720 |
12M26G1000/5 |
12 |
150×150 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG1100*7 |
1500 |
1100/880 |
1000/800 |
12M26G1100/5 |
12 |
150×150 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG800*76 |
1800 |
1000/800 |
900/720 |
12M26G800/6 |
12 |
150×150 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG900*76 |
1800 |
1125/900 |
1000/800 |
12M26G900/6 |
12 |
150×150 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG1000*76 |
1800 |
1100/1000 |
/ |
12M26G1000/6 |
12 |
150×150 |
Electronic Governor |
Non-Road Emission Exempt |
