产品概述

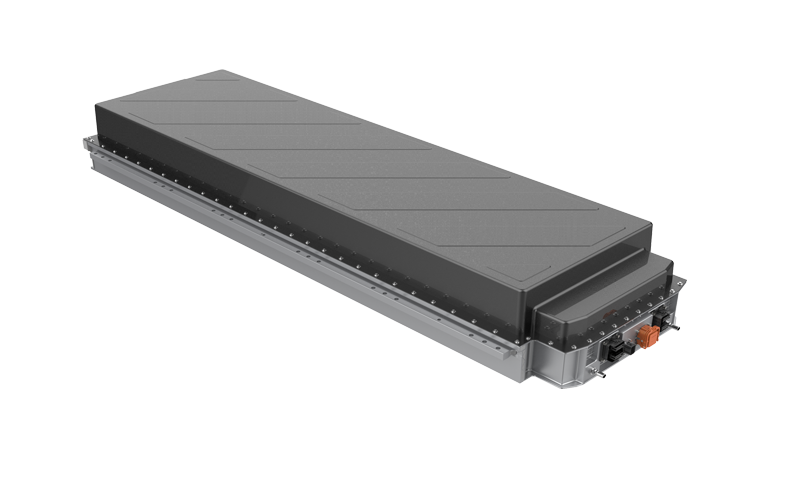

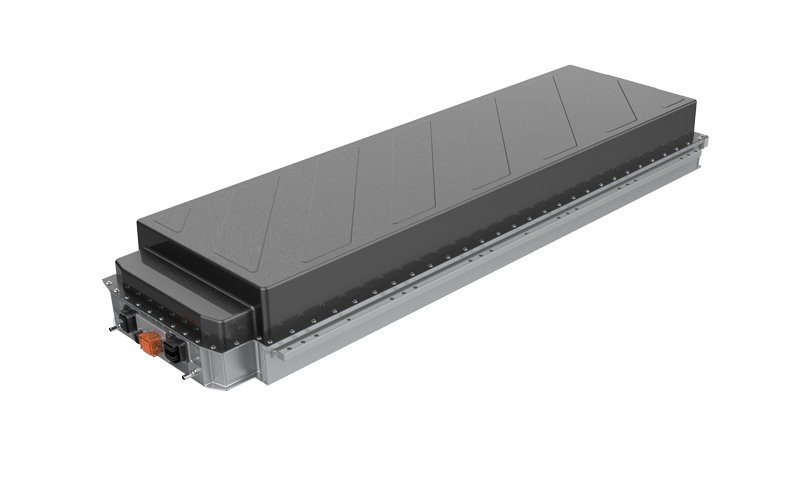

A center-mounted fast-charging battery for light-duty trucks
产品优势
Enhanced reliability: High-side beam aluminum profile structure provides superior structural integrity and mechanical durability.
Lightweight design: Optimized structure with energy density ≥ 168 Wh/kg.
Reduced recharge time: 20%-80% SOC charging time ≤ 18 min.
Integrated design: Single-pack center-mounted layout for convenient vehicle assembly.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Nominal Voltage (V) |
Rated Capacity (Ah) |
Energy per Pack (kWh) |
Continuous Charging Rate |
Continuous Discharging Rate |
Weight (kg) |
Overall Dimensions (mm) |
Applications |
|
N120 |
563.2 |
214.5 |
121 |
1.9C |
1.9C |
760 |
2141×785×324 |
Light-duty Truck |
|
N140 |
652.8 |
214.5 |
140 |
1.9C |
1.9C |
867 |
2410×785×324 |
Light-duty Truck |
|
N155 |
665.6 |
233.5 |
155 |
1.3C |
1.3C |
935 |
2410×785×324 |
Light-duty Truck |
