Suitable for general market, data centers, livestock farming, real estate, factory warehousing, public utilities, oil and mining fields, equipment rental, water and power grid infrastructure, power stations, specialized products, and communication systems
功率范围/持续功率
结构形式
产品概述

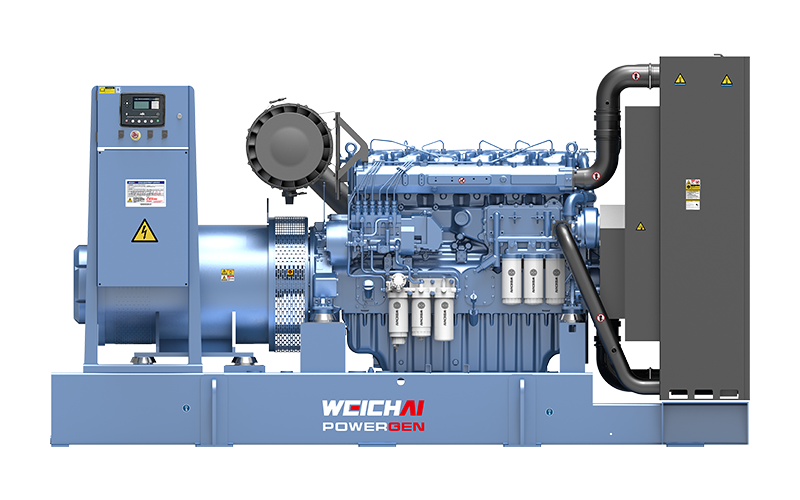

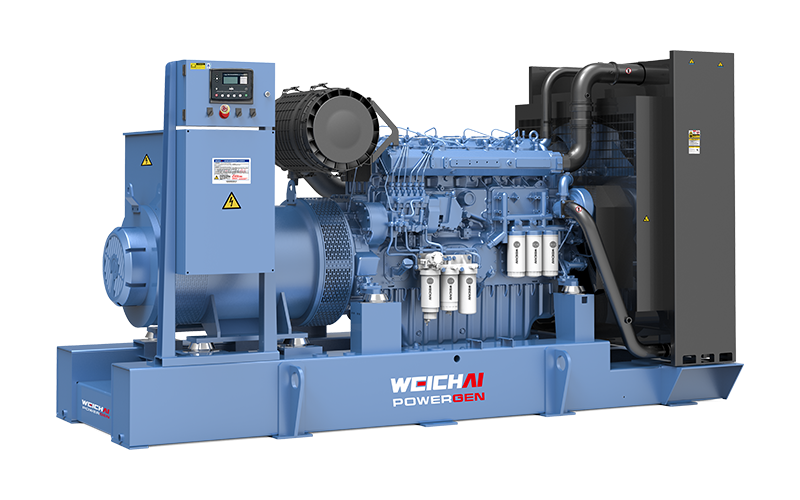

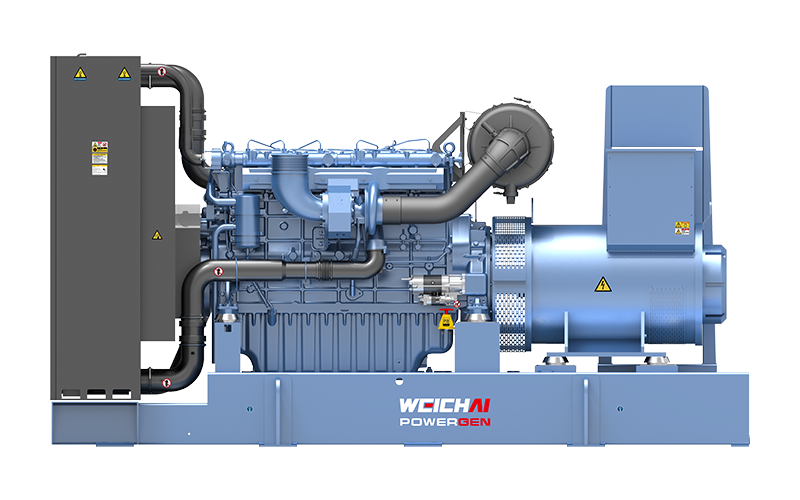

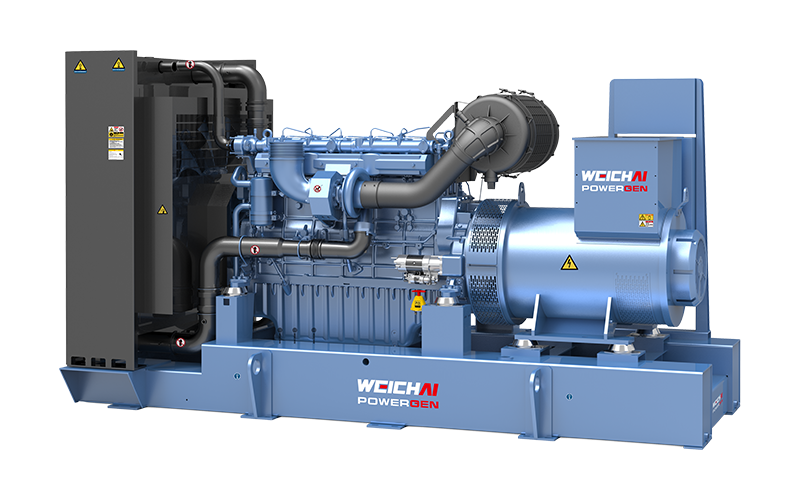

The 6M33 series land-based generator sets are Weichais new premium inline 6-cylinder generator sets, featuring stable power, high reliability, excellent fuel economy, and a wide range of applications; The 6M31 series land-based generator sets offer a power output range of 500-800 kW.
产品优势
High Reliability: Derived from over a century of European engine technology, the generator sets have undergone more than thirty durability and performance tests, ensuring long-lasting durability and superior reliability
Intelligent Control: Equipped with a microcomputer-based intelligent controller and international brand circuit breakers to achieve automated genset control
High-Efficiency Power: Features a proprietary ECU and specialized transient response calibration for robust power performance
High Economy: Matched with high-pressure ratio turbochargers and intercooling to increase air intake and optimize combustion, delivering significant fuel savings
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Baudouin Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG700*7 |
1500 |
700/560 |
640/512 |
6M31G725/5 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG825*7 |
1500 |
825/660 |
750/600 |
6M31G825/5 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG900*7 |
1500 |
900/720 |
800/640 |
6M31G900/5 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG1000*7^ |
1500 |
1000/800 |
/ |
6M31G1000/5^ |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG550*76 |
1800 |
688/550 |
625/500 |
6M31G580/6 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG600*76 |
1800 |
750/600 |
681/545 |
6M31G600/6 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG660*76 |
1800 |
825/660 |
750/600 |
6M31G660/6 |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
|
WPG800*76 |
1800 |
1000/800 |
/ |
6M31G800/6^ |
6 |
149×177 |
Electronic control |
Non-Road Emission Exempt |
