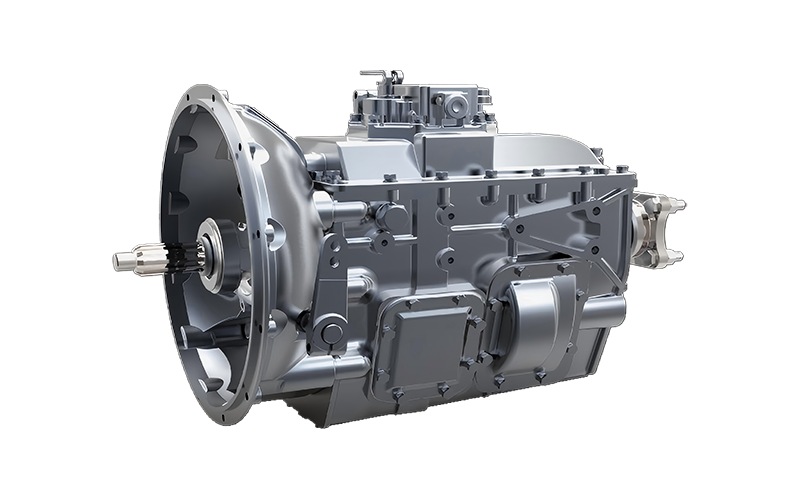

产品概述
Single countershaft with helical gear transmission for high load capacity, low noise, and extended service life; Optimized gear ratio configuration and versatile control options, including single-lever, dual-lever, and direct control for user convenience.
产品优势
Single countershaft with helical gear transmission for high load capacity, low noise, and extended service life; High-speed gears feature a "fine-pitch high-tooth" design for smooth engagement.
All forward gears equipped with locking-ring inertia synchronizers, providing high synchronization capacity for flexible and effortless shifting.
Compatible with both front-engine and rear-engine configurations.
Optimized gear ratio configuration and versatile control options, including single-lever, dual-lever, and direct control for user convenience.
产品规格
|
Model |
6J76TB |
|
Input torque (N·m) |
760 |
|
Maximum speed (rpm) |
2600 |
|
Overall length (mm) |
714 |
|
1st Gear |
5.629 |
|
2nd Gear |
3.240 |
|
3rd Gear |
1.980 |
|
4th Gear |
1.337 |
|
5th Gear |
1.000 |
|
6th Gear |
0.770 |
|
Reverse Gear |
5.542 |
|
Oil capacity (L), tolerance ±4% |
7.5 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
