产品概述

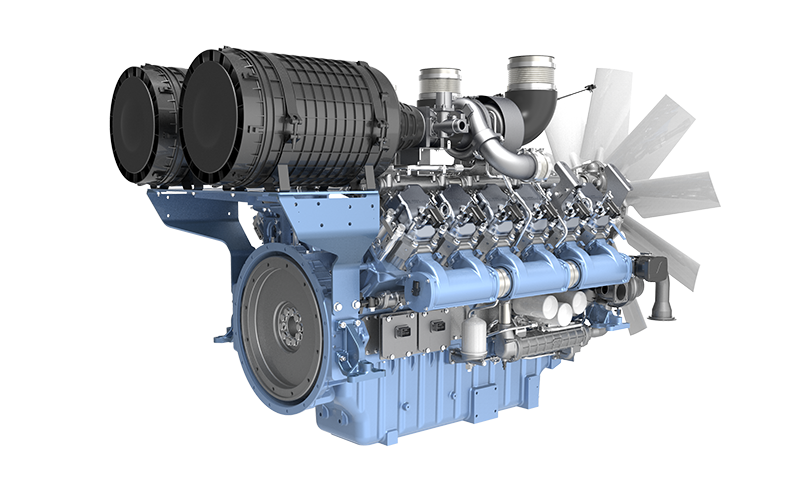

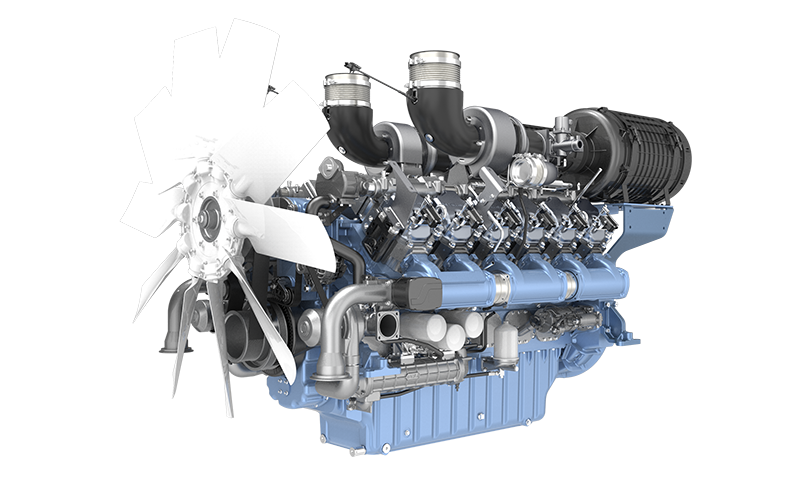

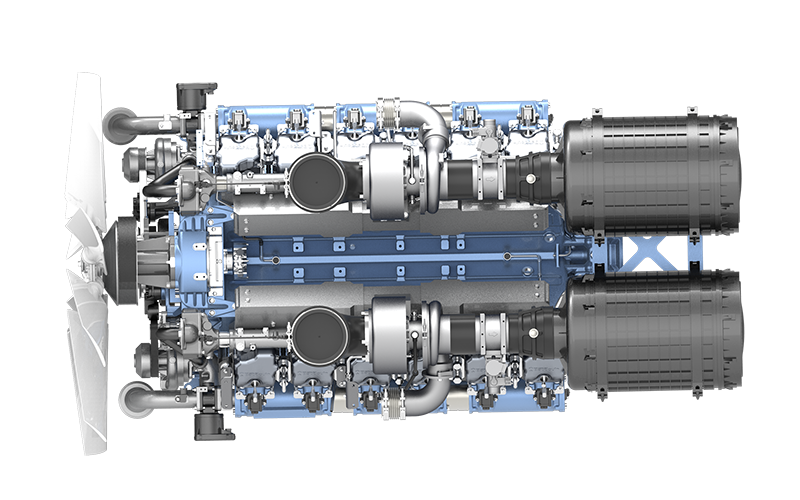

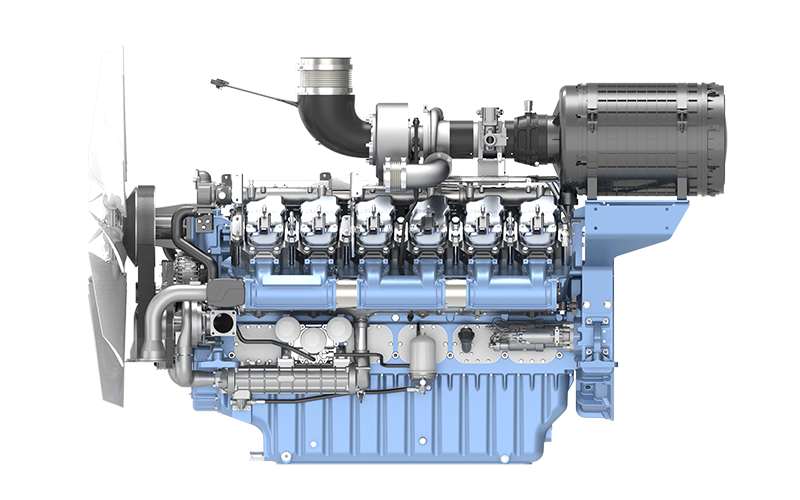

The 12M26NG is a new-generation product of the high-end M26 engine platform; Power output ranges from 550 to 600 kWm, suitable for 500–550 kWe generator sets.
产品优势
High reliability: Equipped with an internationally advanced electronic control system, featuring a mature and reliable architecture for precise control across all operating conditions.
Superior economy: Advanced ignition system and optimized combustion chamber design ensure more reliable ignition; Specialized valve seals and piston rings are used to reduce lube oil consumption, achieving a specific oil consumption rate of less than 0.2 g/(kW·h).
Strong environmental adaptability: The engine can operate on various combustible gases such as natural gas, oilfield associated gas, and biogas.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
12M26G2N0/5 |
31.8 |
4 |
550/1500 |
/ |
500 |
/ |
Natural gas |
|
12M26G2N0/6 |
31.8 |
4 |
600/1800 |
/ |
550 |
/ |
Natural gas |
