产品概述

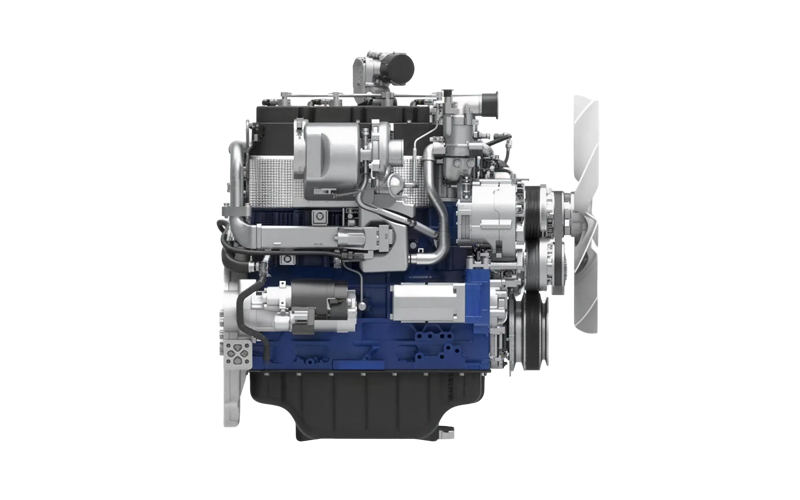

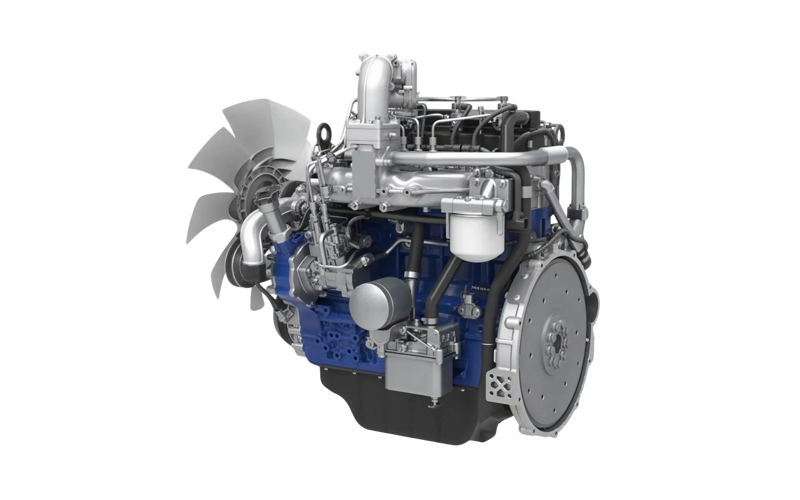

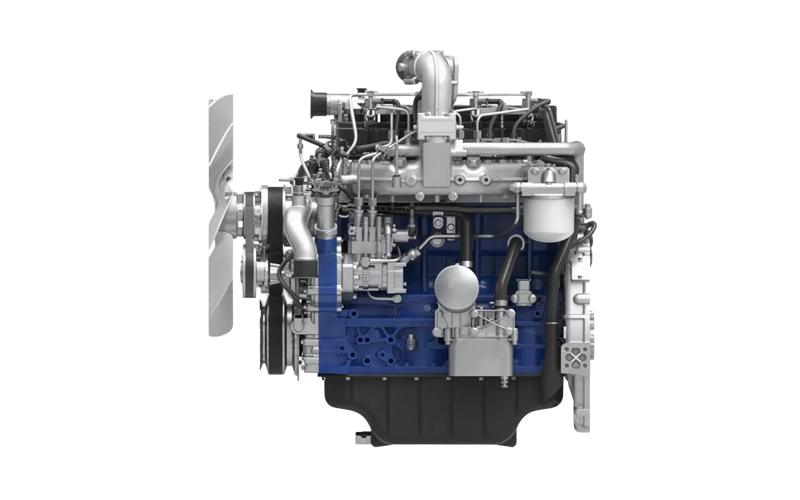

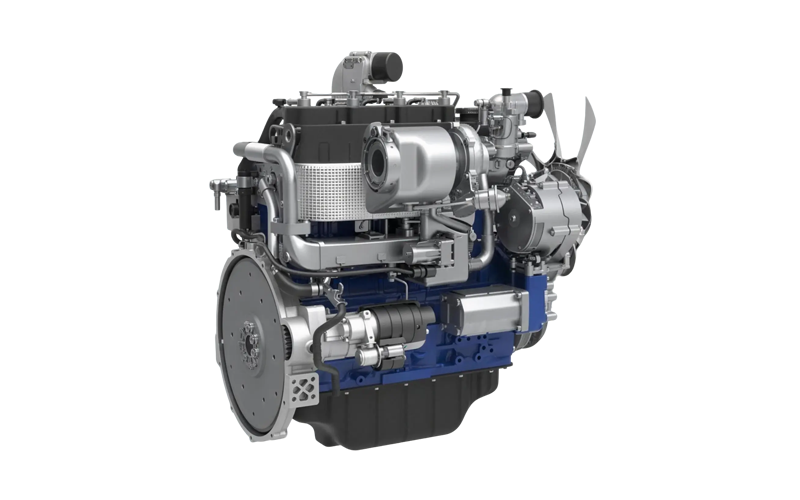

Newly developed product with a four-valve structure, enhancing power and fuel economy with high adaptability; Power range of 60–100 kW, compliant with EU Stage IIIA/Stage V emission standards, suitable for 80–120 PS tractors.
产品优势
Power Performance: Four-valve design optimizes combustion, delivering rapid power response, high low-end torque, and superior anti-bogging capability.
Fuel Economy: Separate intake and exhaust manifold design enhances volumetric efficiency and optimizes combustion, leading to improved fuel economy.
Adaptability: Fully sealed design suitable for paddy and dry field operations, featuring a standard proprietary dust filtration system with ≥93% efficiency to handle harsh working environments.
Superior NVH performance: Utilizing pilot injection technology and a high-precision meshing gear train, the engine delivers low vibration and noise, outperforming competitors by 8%.
Emission Compliance: Developed based on China VI on-road emission standards, with specialized strategies for tractors to extend regeneration intervals; Upgradeable to China Non-Road Stage IV and EU Stage V, ensuring a long service life.
Aesthetic upgrade: Family-style design, with smoother and more aesthetic oil and electrical routing.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP3.6NG82E301 |
60/2200 |
300/1500-1700 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG96E301 |
70/2200 |
410/1600 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG102E301 |
75/2200 |
435/1600 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG112E301 |
82.5/2200 |
465/1600 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG122E301 |
90/2200 |
500/1500-1700 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG136E301 |
100/2200 |
550/1500-1700 |
3.58 |
EU Stage IIIA |
CR |
Tractor |
4 |
|
WP3.6NG88E680 |
65/2200 |
355/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG94E680 |
69/2200 |
375/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG95E680 |
70/2200 |
410/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG102E680 |
75/2200 |
405/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG105E680 |
77/2200 |
455/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG112E681 |
82.5/2200 |
465/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
|
WP3.6NG121E680 |
89/2200 |
465/1600 |
3.58 |
Stage V |
CR+EGR+DOC+DPF+SCR |
Tractor |
4 |
