Engines of the same power class feature more compact dimensions, lower weight, efficient combustion, and higher power density.
Suitable for general market, industrial warehousing, construction and rental, public utilities, highway, water conservancy, and power grid applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

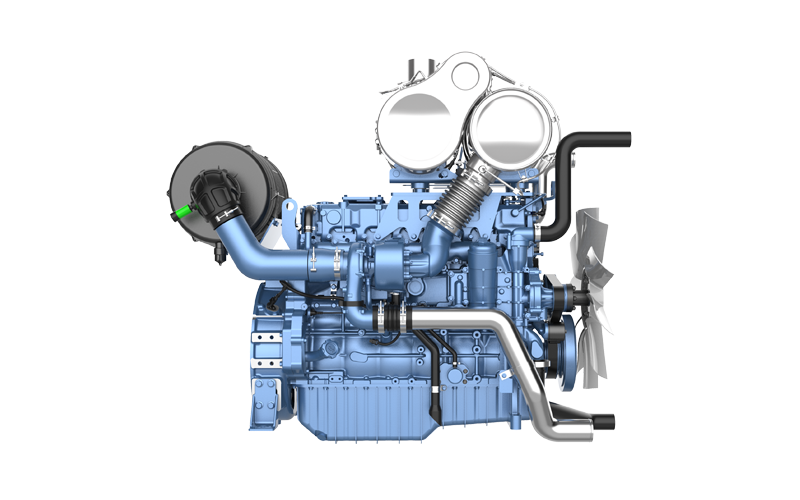

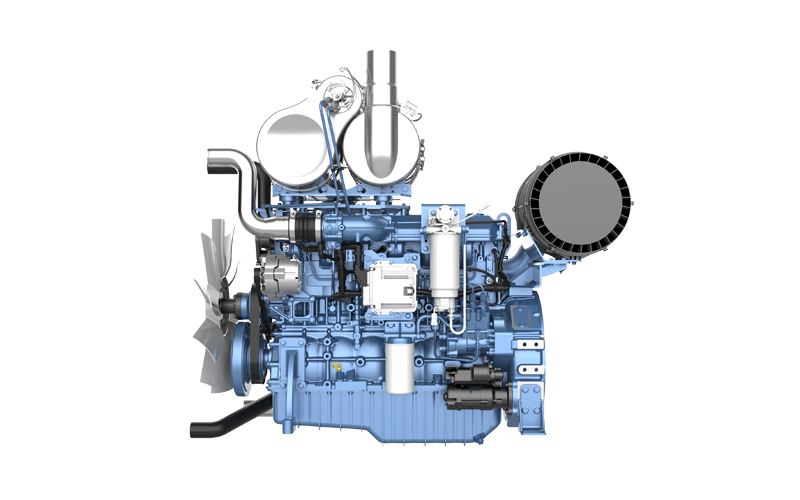

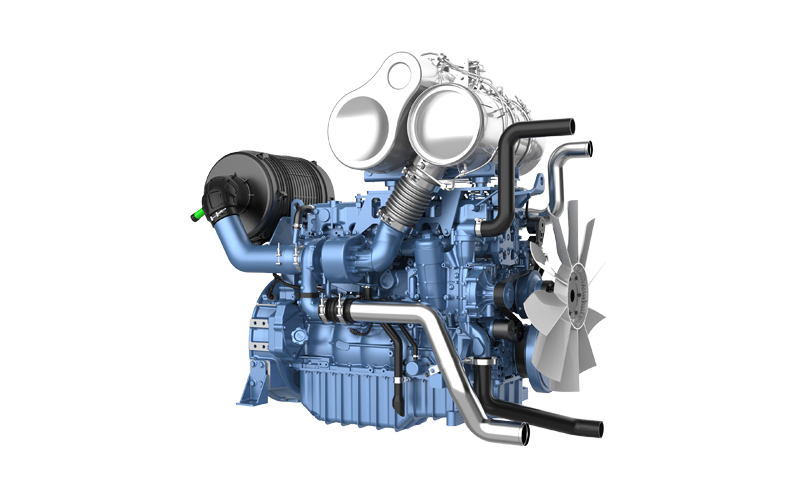

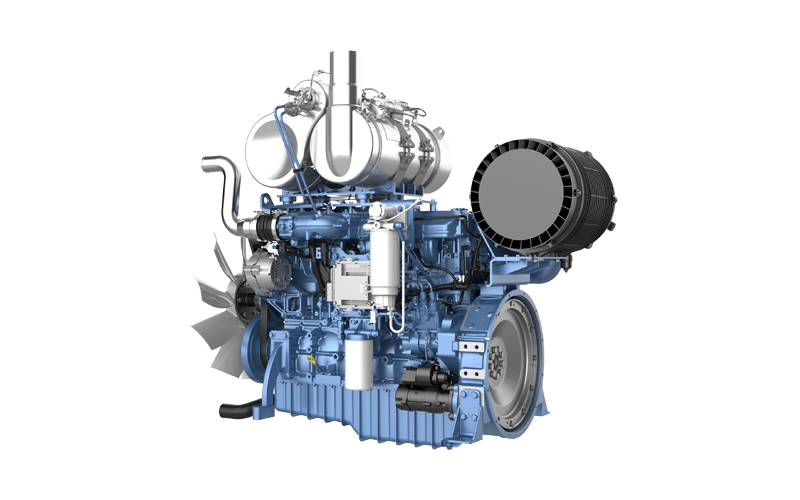

The 6M12 series is a new generation of high-end engines independently developed by Weichai, compliant with China Non-Road Stage III and IV emission standards, featuring a compact structure, high reliability, and excellent load response; The 6M12 diesel engine offers a power output range of 168–264 kWm, suitable for 150–220 kWe generator sets.
产品优势
Fuel efficiency: Optimized engine intake and fuel systems to maximize potential, with a focus on fuel consumption optimization in the 60%–90% load range for low fuel consumption;
High-altitude and cold-start capability: The engine achieves direct cold-start at -15°C without any auxiliary measures; At -30°C, the engine can be started reliably using air intake preheating;
High-altitude adaptability: The engine maintains rated power output at altitudes below 2,000 m; The engine operates reliably at altitudes above 2,000 m;
Adaptability: Features a mid-mounted underslung turbocharger and a specialized flat oil pan to reduce the overall engine height; Compact structure, making it an ideal power source for various generator sets
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
6M12 China Non-Road Stage III Product Spectrum |
|||||||
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
6M12G2D3/5 |
7.47 |
4 |
168/1500 |
185/1500 |
150 |
160 |
Electronically controlled high-pressure common rail |
|
6M12G6D3/5 |
7.47 |
4 |
218/1500 |
240/1500 |
180 |
200 |
Electronically controlled high-pressure common rail |
|
6M12G8D3/5 |
7.47 |
4 |
235/1500 |
264/1500 |
200 |
220 |
Electronically controlled high-pressure common rail |
|
6M12 China Non-Road Stage IV Product Spectrum |
|||||||
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
6M12G1D4/5 |
7.47 |
4 |
168/1500 |
185/1500 |
150 |
160 |
Electronically controlled high-pressure common rail |
|
6M12G3D4/5 |
7.47 |
4 |
218/1500 |
240/1500 |
180 |
200 |
Electronically controlled high-pressure common rail |
|
6M12G5D4/5 |
7.47 |
4 |
235/1500 |
264/1500 |
200 |
220 |
Electronically controlled high-pressure common rail |
|
6M12 EU Stage IIIA Product Spectrum |
|||||||
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Technical route |
|
6M12G2D3/5 |
7.47 |
4 |
168/1500 |
185/1500 |
150 |
160 |
Electronically controlled high-pressure common rail |
|
6M12G6D3/5 |
7.47 |
4 |
218/1500 |
240/1500 |
180 |
200 |
Electronically controlled high-pressure common rail |
|
6M12G8D3/5 |
7.47 |
4 |
235/1500 |
264/1500 |
200 |
220 |
Electronically controlled high-pressure common rail |
|
6M12G4D3/6 |
7.47 |
4 |
144/1800 |
158/1800 |
120 |
132 |
Electronically controlled high-pressure common rail |
|
6M12G6D3/6 |
7.47 |
4 |
164/1800 |
180/1800 |
145 |
160 |
Electronically controlled high-pressure common rail |
