产品概述

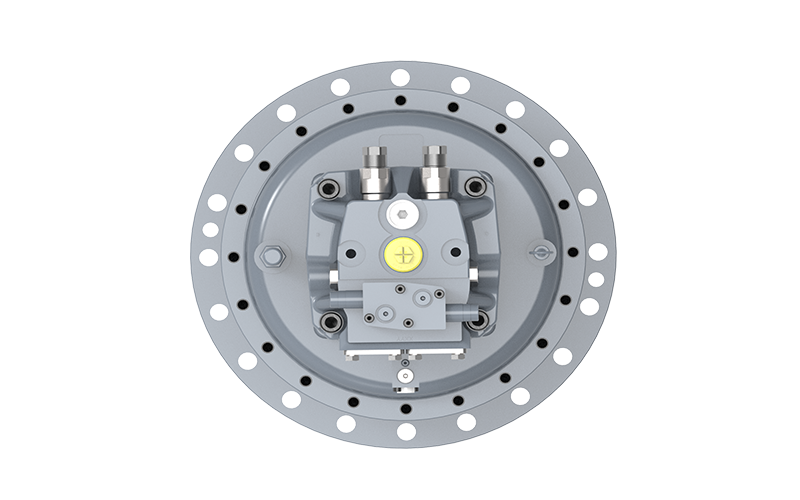

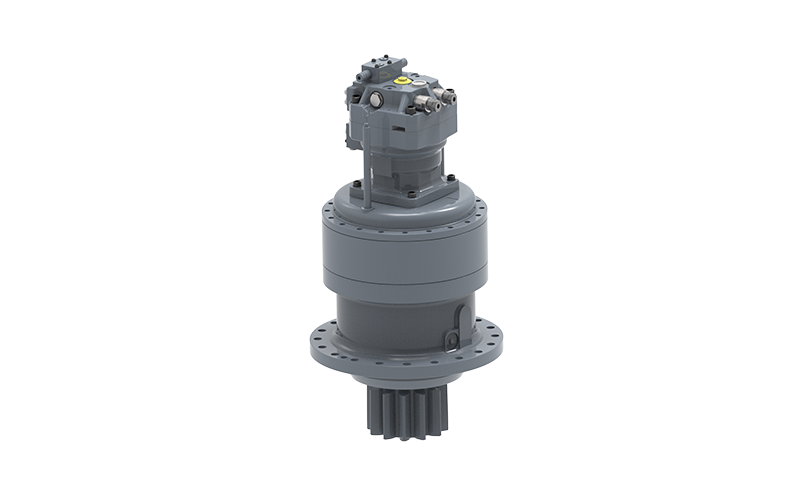

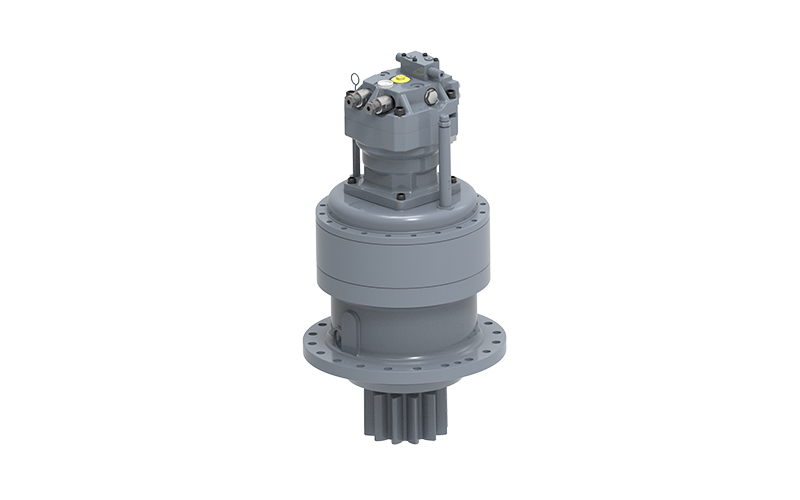

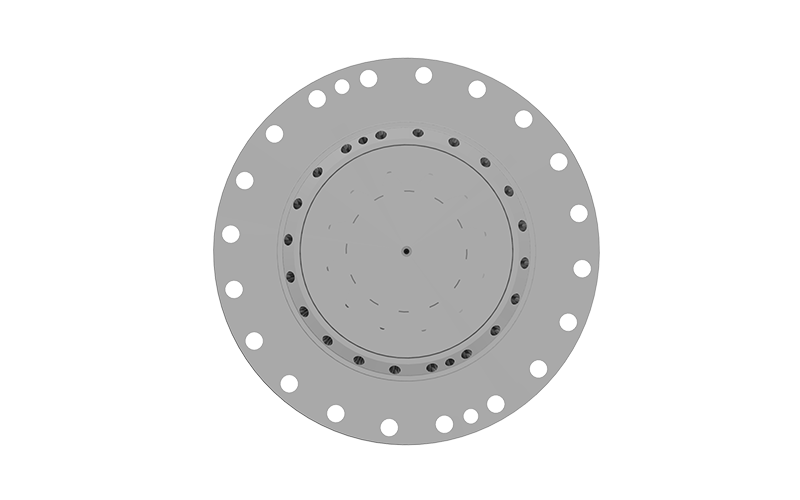

The swing motor utilizes the 02-series technology platform, featuring a compact structure and high energy density, offering customers greater installation flexibility. The unique rotating assembly design provides high pressure resistance; paired with various gear reduction ratios, it offers customers a wider range of speed and torque options. Additionally, it features high starting torque to meet specific customer operational requirements.
产品优势
Rapid control response.
High power density.
Primarily intended for excavator swing motors.
产品规格
| Specification | GS02H | GS04H | GS06H | GS12H | GS12H | GS14H | GS16H | GS16H | GS20H | GS23H | GS25H | GS27H | GS29H | GS32H | GS32H |
| Applicable Tonnage(t) | 6 | 8 | 13 | 21 | 21 | 23 | 24-26 | 24-26 | 65-80 | 37 | 95-100 | 50 | 100 | 130-150 | 130-150 |
| Max. displacement (cc/rev) | 30.5 | 46.8 | 65 | 135 | 155 | 165 | 165 | 180 | 180 | 180 | 249 | 249 | 249 | 249 | 210 |
| Max. operating speed (rpm) | 72 | 88 | 100 | 90 | 90 | 90 | 90 | 90 | 71 | 71 | 70 | 60 | 60 | 56 | 100 |
| Rated pressure (bar) | 216 | 230 | 245 | 270 | 245 | 270 | 310 | 285 | 255 | 315 | 285 | 270 | 285 | 295 | 350 |
| Allowable case pressure (bar) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Braking torque (at rated pressure) (N路m) | 2691 | 3601 | 8464 | 16608 | 16608 | 16633 | 16608 | 20530 | 25855 | 25855 | 32017 | 37044 | 37044 | 39514 | 49164 |
| Output torque (N路m) | 2434 | 3336 | 5074 | 11614 | 12100 | 14216 | 16298 | 16346 | 18418 | 22752 | 24612 | 26978 | 28476 | 31441 | 31460 |
| Gear ratio (i) | 23.2 | 19.4 | 20 | 20 | 20 | 20 | 20 | 20 | 25.2 | 25.2 | 21.8 | 25.2 | 25.2 | 26.9 | 26.9 |
| Weight (approx.) (hydraulic control, case drained) (kg) | 60 | 77 | 119 | 234 | 234 | 299 | 320 | 335 | 419 | 414 | 575 | 562 | 582 | 595 | 705 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
