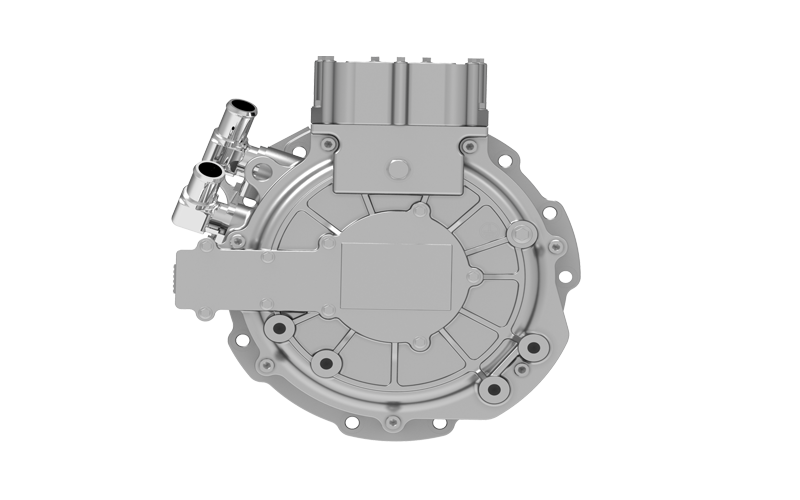

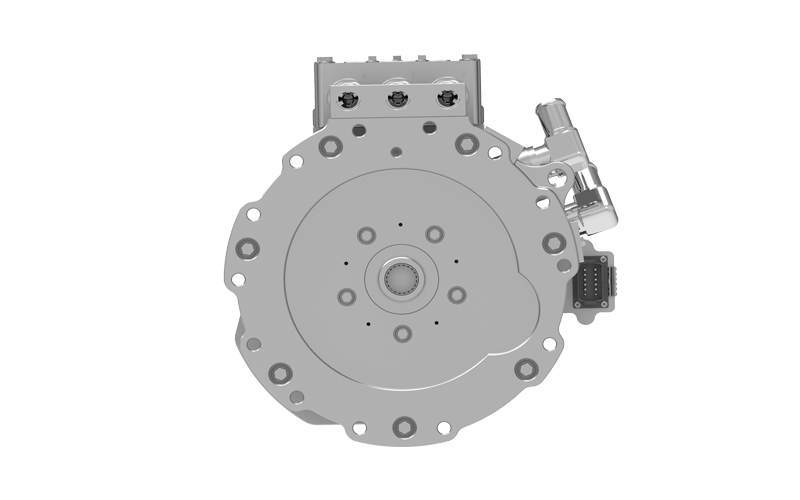

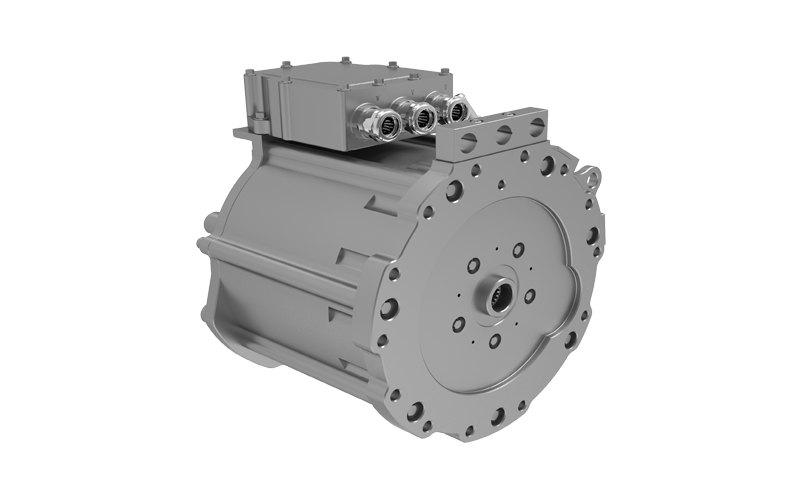

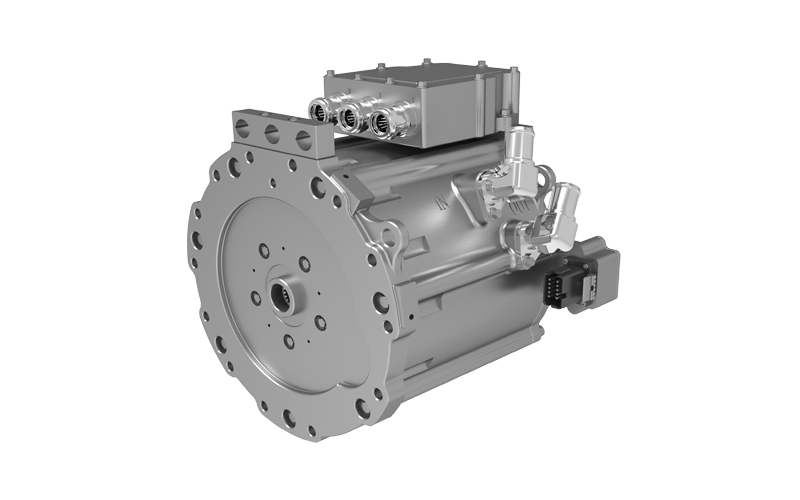

Commercial Vehicle Motor

High power density and extreme lightweight design: Utilizing 8-layer hair-pin winding technology, the axial length is reduced by 15%, achieving a maximum power density of 5.5 kW/kg and an 8% reduction in total unit weight.

Robust performance: Peak output power of 170 kW, peak output torque of 420 N·m, providing 20% better power performance than competing products of the same volume. With a maximum speed of 14,000 rpm, it offers higher efficiency at high-speed operating points and maintains sustained output capability up to 10,000 rpm without derating.

High operational efficiency for extended range: Peak efficiency of 97.8%, with targeted development for high-efficiency operating zones. Energy consumption is reduced by over 10% at constant speeds and by over 3% under combined operating cycles.

Strong environmental adaptability, safety, and reliability: Equipped with ultra-high-speed bearings, IP68 protection rating, anti-condensation design, and 50g shock resistance. It supports cold starting at -40°C, ensuring worry-free operation in harsh environments.

Low noise for enhanced comfort: Incorporates rotor skewing and slot-shaping technology, achieving a no-load noise level of <70 dBA and a maximum full-load noise level of <80 dBA.
