产品概述

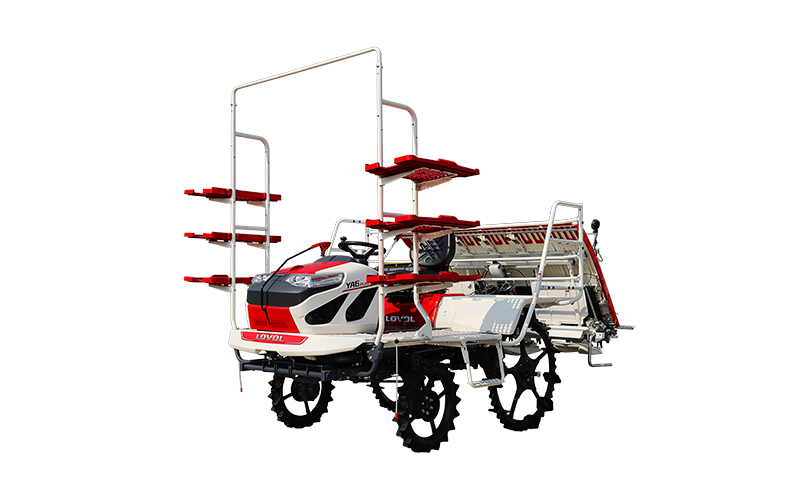

LOVOL rice transplanters deliver high operational efficiency and reliable performance, designed primarily for the transplanting of mat-type and pot-seedling rice, with versatile capabilities including integrated fertilization and land leveling.The machine features a 25 hp engine, a 1.5 m² operating platform, a Danfoss hydrostatic transmission (HST), and a reinforced chassis.Equipped with a four-wheel suspension system and a vibration-dampening seat to ensure operator comfort.The seedling loading platform features reinforced, high-density guardrails for enhanced operator safety, with pre-drilled mounting holes for optional safety netting.
产品优势
产品规格
|
Overall Dimensions(mm) |
Total Weight (kg) |
Engine Power(Ps) |
Working Efficiency(h㎡/h) |
Fuel Tank Capacity（L） |
Front Wheel Diameter × Width(mm) |
Rear Wheel Diameter × Width (mm) |
Wheel Track (mm) |
Minimum Ground Clearance(mm) |
Working Rows(rows) |
Row Spacing(mm) |
Plant Spacing(mm) |
Transplanting Depth (mm) |
|
3350x2220x2580 |
880 |
25 |
0.5~0.83 |
34 |
∅650×95 |
∅950×150 |
1220 |
500 |
8 |
250 |
(*1)100,120,140,160,180,210,240 |
10~55(7 grades) |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
