产品概述

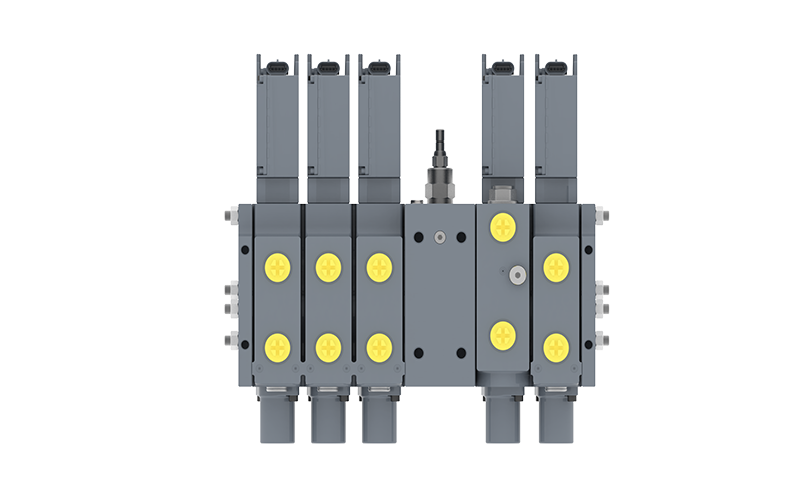

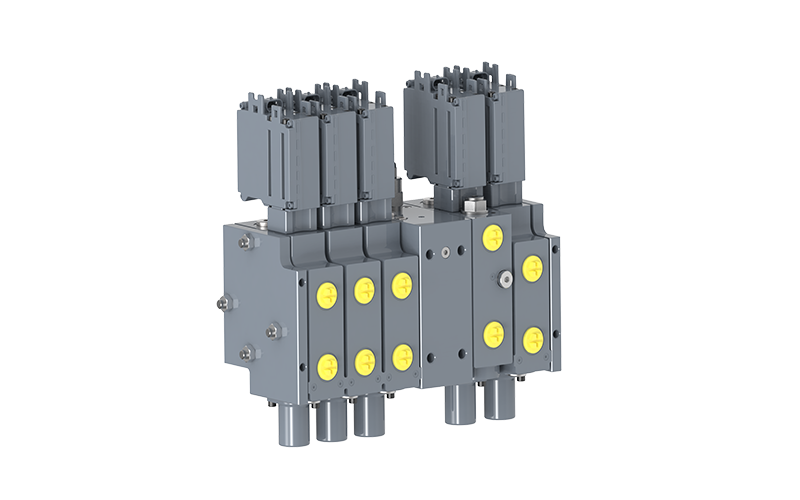

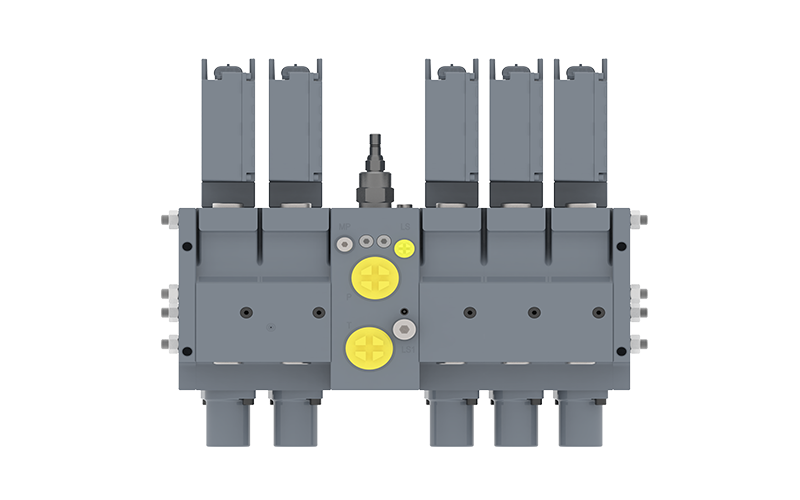

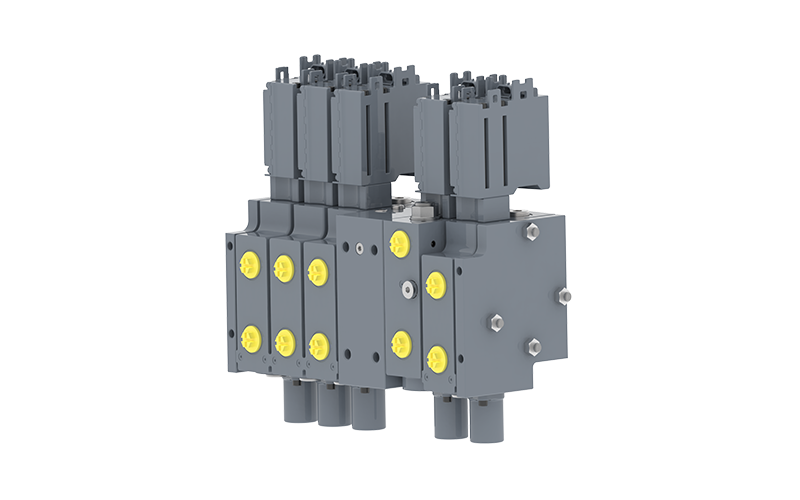

The TCV control valve is an intelligent control valve designed for high-horsepower tractors, featuring a sectional modular design that accommodates various user configuration requirements; Driven by a stepper motor with integrated electronics, controlled via CAN bus signals, and equipped with built-in fault diagnosis and environmental monitoring functions; Independent of pilot pressure, ensuring immunity to external factors such as pressure and temperature fluctuations, viscosity changes, or contamination; IP6K9K protection rating to meet the operational requirements of harsh external
产品优势
High control precision and rapid response.
High product reliability and contamination resistance.
Zero leakage under load-holding conditions.
Modular design.
产品规格
|
Item |
80 |
120 |
|
Specification |
80 |
120 |
|
Max. flow (L/min) |
80 |
120 |
|
Rated pressure (bar) |
175 |
240 |
|
Peak pressure (bar) |
200 |
280 |
|
Number of sections |
5~7 |
6~8 |
|
Weight (approx.) (drained, without internal oil) (kg) |
39 (6 pieces) |
65 (6 pieces) |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
