产品概述

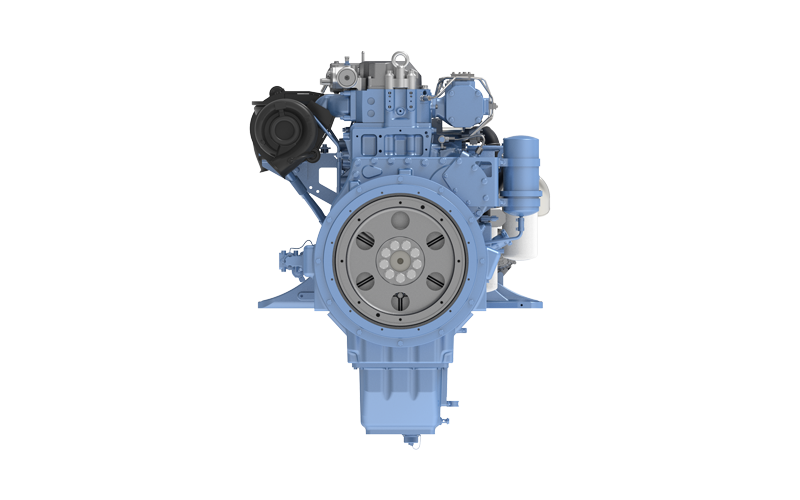

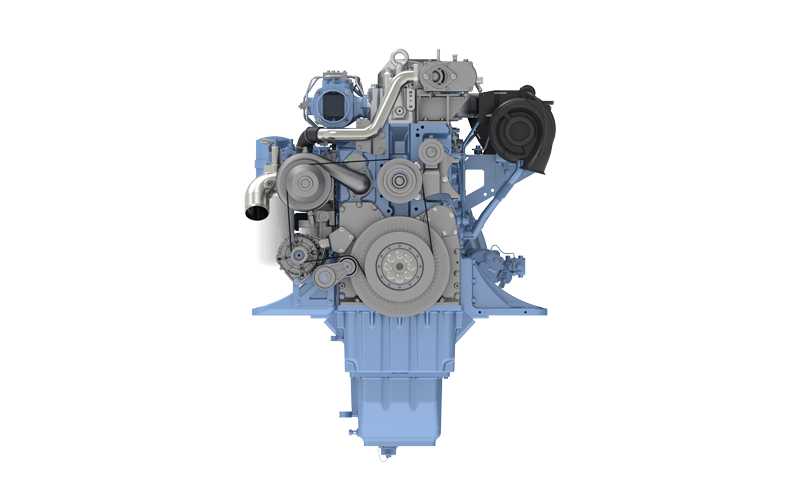

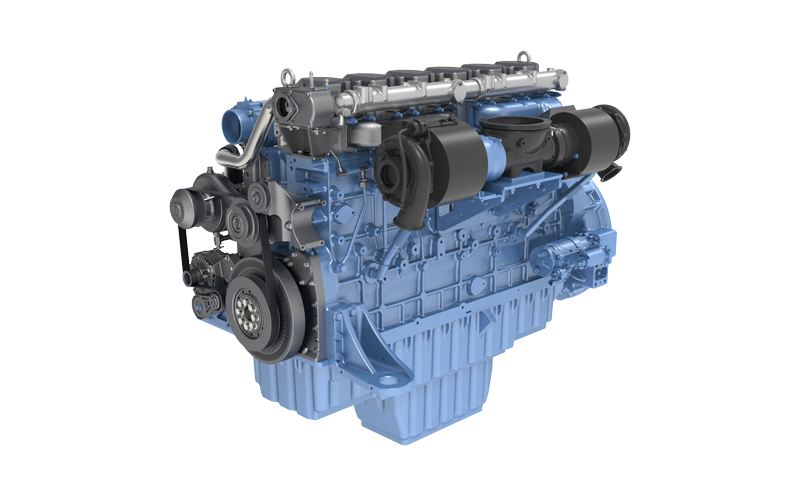

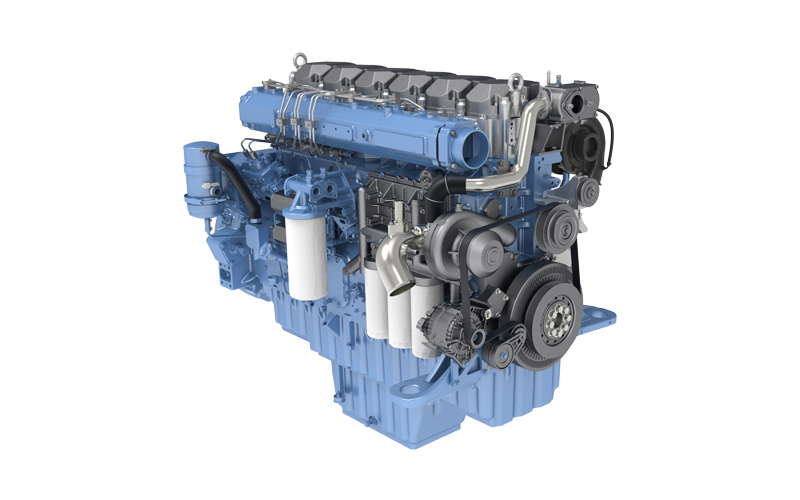

6-cylinder, in-line, four-stroke, electronically controlled high-pressure common rail, turbocharged and intercooled, displacement of 19.6L, rated power of 610 kW, rated speed 1800 rpm, maximum torque/speed of 3900 N·m / 1400 rpm.
产品优势
Powerful performance: with a maximum power of 610 kW and a maximum torque of 3900 N·m.
Excellent fuel economy: with fuel consumption in typical operating ranges over 10% lower than mainstream competing products; superior NVH performance, with noise 1–2 dB(A) lower than competing products.
Capable of high-altitude operation at 5000m: with an allowable ambient temperature range of -50–50℃.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
6M33G777E305 |
571/1800 |
3600/1300~1500 |
19.6 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
100t mining excavator |
Number of valves per cylinder |
|
6M33G830E305 |
610/1800 |
3900/1400 |
19.6 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
125t mining excavator |
Number of valves per cylinder |
