产品概述

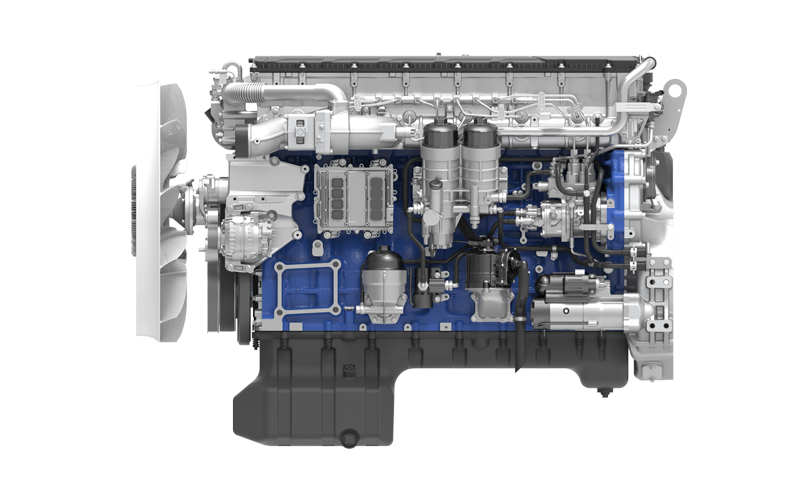

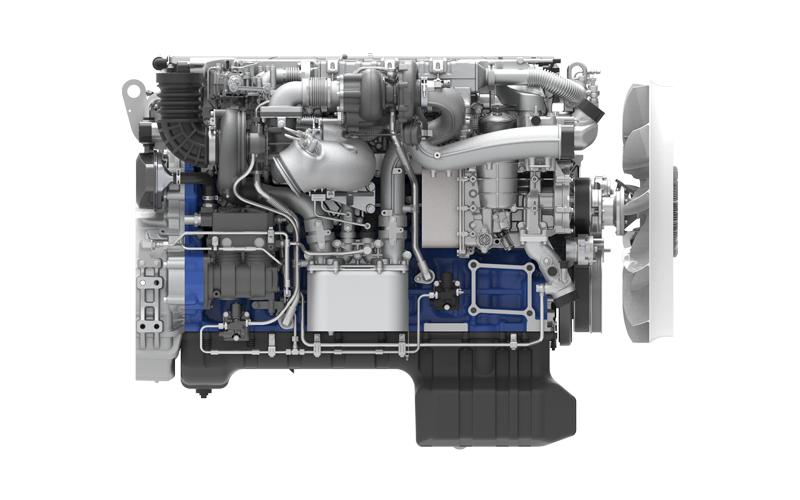

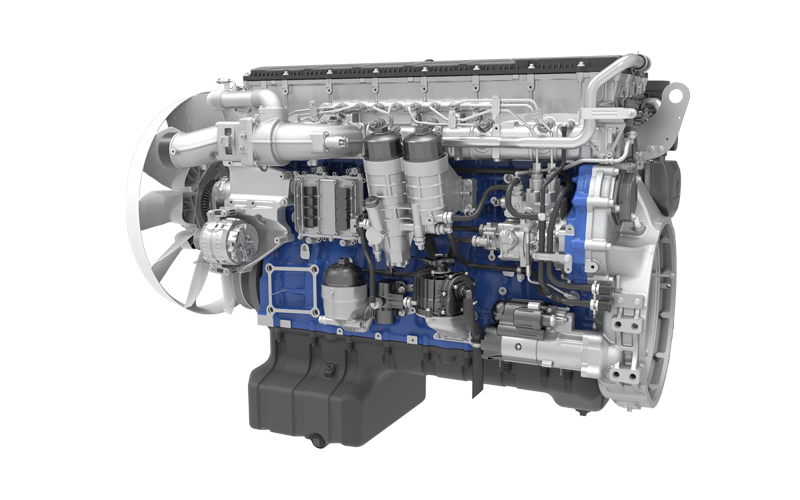

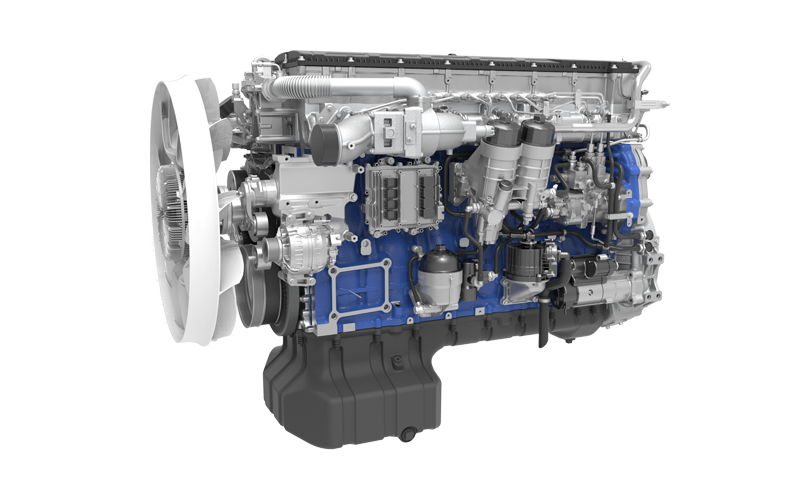

The WP15H diesel engine is a new-generation platform model from Weichai with a displacement of 15.3L and a power output ranging from 580 Ps to 660 Ps. It meets Euro VI emission standards and is suitable for 6×4 mountainous tractors, heavy-duty tractors, and oversized transport vehicles.
产品优势
High reliability: B10 life of 1.8 million km. High-position cooling for the engine block and independent cooling circulation for the upper part of the cylinder liner. Cylinder head features Top-Down cooling to reduce fire deck temperature. Moving parts feature high-reliability structural design.
Excellent power: Rated power of 660 Ps and maximum torque of 3200 N·m. Rear PTO output of 900 N·m.
Superior performance: Monoblock cylinder head, 4 valves per cylinder. Matching design of the new combustion chamber and intake ports.
Excellent NVH performance: Cylinder head cover with vibration-damping rubber seals. Rear-mounted gear train. Oil pan with fully suspended structure.
Lightweight design: Application of lightweight materials such as plastics and aluminum alloys. Integrated modular design.
Easy maintenance and low cost: Integrated engine cooling/oil cooling module, with only filter elements requiring replacement. Integrated fuel filter module, with only filter elements requiring replacement. Rotor filter extends oil degradation interval. Universal electronically controlled high-pressure common rail fuel system for H-platform.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP15H580E50 |
426/1800 |
2700/1100-1500 |
15.3 |
Euro V |
CR+SCR |
Tractor |
4 |
|
WP15H620E50 |
456/1800 |
3000/1100-1400 |
15.3 |
Euro V |
CR+SCR |
Tractor |
4 |
|
WP15H660E50 |
485/1800 |
3200/1200-1400 |
15.3 |
Euro V |
CR+SCR |
Tractor |
4 |
|
WP15H580E62A |
426/1800 |
2700/1100-1500 |
15.3 |
Euro VI |
CR+DOC+DPF+SCR |
Tractor |
4 |
|
WP15H620E62A |
456/1800 |
3000/1100-1400 |
15.3 |
Euro VI |
CR+DOC+DPF+SCR |
Tractor |
4 |
|
WP15H660E62A |
485/1800 |
3200/1200-1400 |
15.3 |
Euro VI |
CR+DOC+DPF+SCR |
Tractor |
4 |
