产品概述

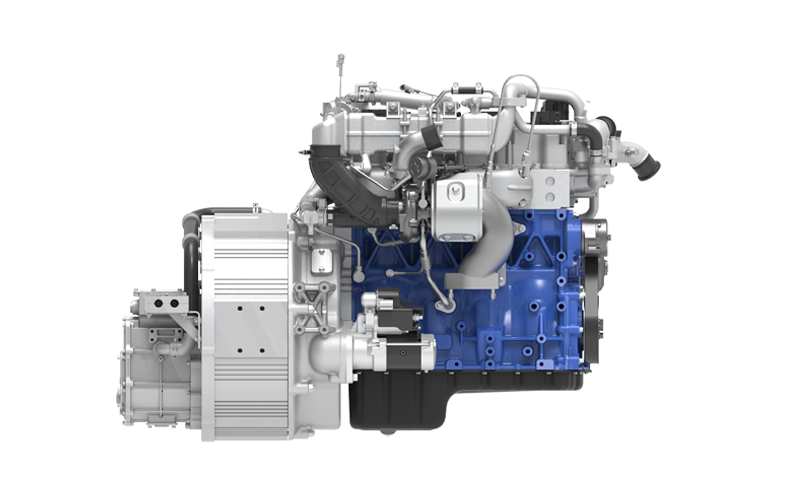

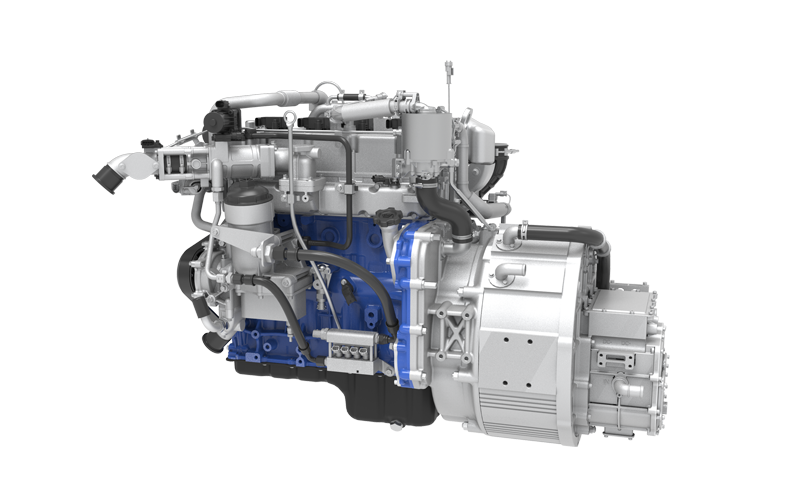

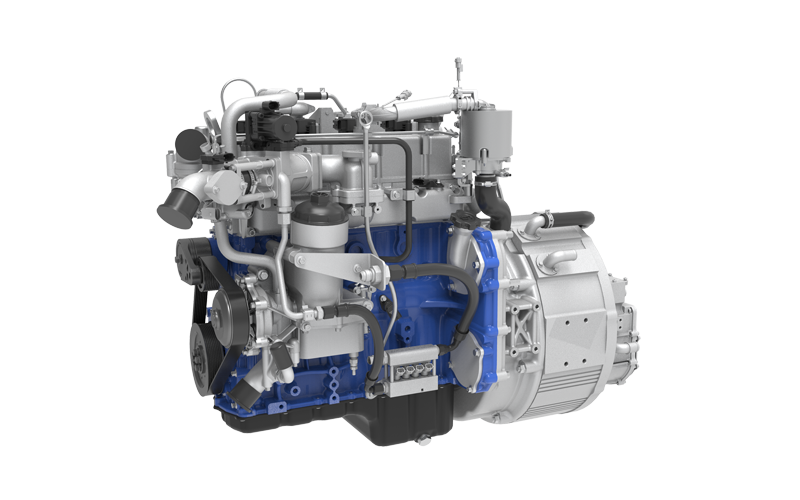

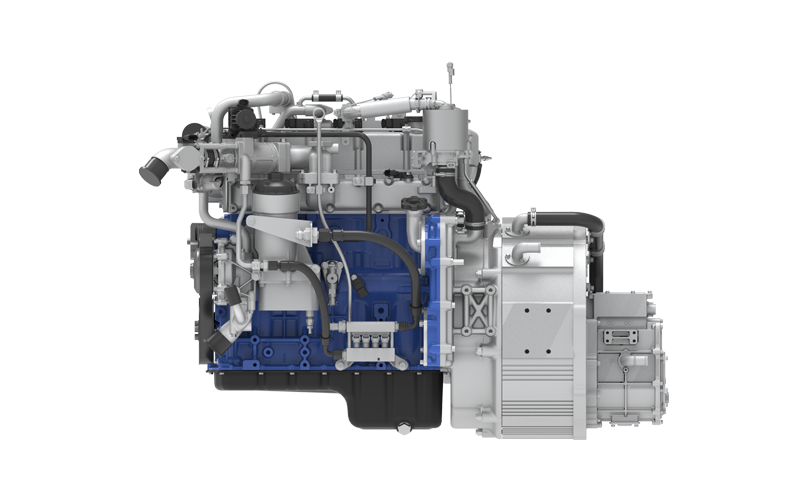

Weichais new generation gas-electric hybrid range-extender powertrain meets China VI emission standards, featuring a self-developed electric motor with a peak efficiency of 97%. Gas-electric hybrid range-extender power significantly extends driving range, effectively resolving range anxiety for battery electric heavy-duty trucks; Flywheel-integrated motor and controller technology ensures a compact size and high adaptability; multiple iterations of noise reduction technologies significantly improve the NVH (Noise, Vibration, and Harshness) performance of the range extender.
产品优势
Power Performance: Delivers a pure electric driving experience with rapid start-up and robust power output.
Economy: Weichai's new generation gas-electric hybrid model features a power generation efficiency of >4.8 kW·h/kg, providing a total range of over 800 km on a full tank of gas and battery charge.
Reliability: Utilizes Weichai's global premium supply chain; comprehensive testing of the engine, motor, and controller assembly enhances overall system reliability.
Comfort: Precision-tuned NVH through targeted noise and vibration reduction during range-extension generation modes, significantly enhancing ride comfort.
产品规格
| Assembly | Rated power (kW/Ps) | 80/109 |
| Assembly | Rated speed (r/min) | 2000 |
| Assembly | Power generation efficiency (kW·h/kg) | ＞4.8 |
| Engine | Fuel | LNG |
| Engine | Displacement (L) | 2.97 |
| Engine | Emission standard | China VI |
| Motor system | Rated voltage (VDC) | 689 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power generation (kW) |
Target applications |
|
WPH3N-80-01 |
≥ 80 kW (peak power 96 kW) |
Range-extended 6x4 or 4x2 tractor trucks |
