High air-fuel ratio control precision, efficient combustion, high thermal efficiency, and high parts commonality with diesel engines.
Suitable for general market, construction and rental, oil & gas fields, and power plant applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

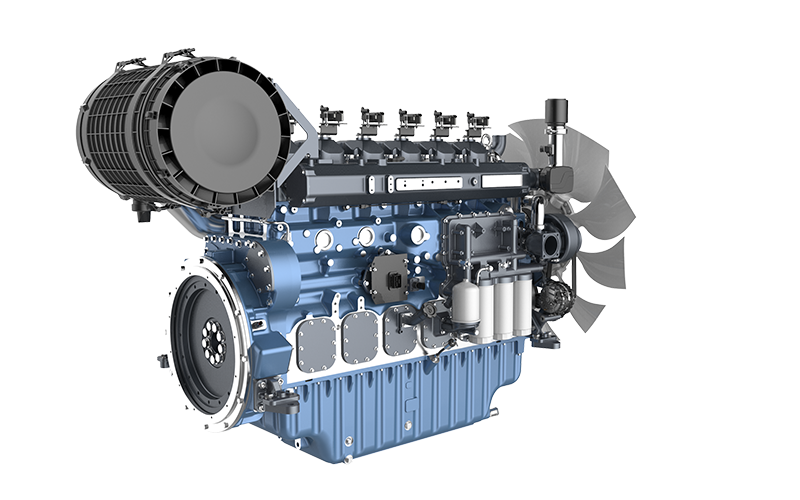

The 6M33 gas engine series is the inaugural product of the new-generation high-end M33 engine platform; Designed for 400 kWe generator sets.
产品优势
High reliability: Developed based on the mature Baudouin diesel engine platform, ensuring long service life for key components; High-strength design with optimized key components to better adapt to the high thermal load characteristics of gas engines.
Superior economy: Closed-loop air-fuel ratio control and cylinder-to-cylinder uniformity control enable more precise air-fuel management, fully optimized combustion, and lower gas consumption; Advanced ignition system and optimized combustion chamber design ensure more reliable ignition.
Ease of maintenance: Inspection windows are located on both sides of the engine block to facilitate the replacement of connecting rods and rod bearings.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
6M33G6B0/5 |
19.6 |
4 |
450/1500 |
/ |
400 |
/ |
Biogas |
|
6M33G6N0/5 |
19.6 |
4 |
450/1500 |
/ |
400 |
/ |
Natural gas |
|
6M33G6N0/6 |
19.6 |
4 |
480/1800 |
/ |
400 |
/ |
Natural gas |
