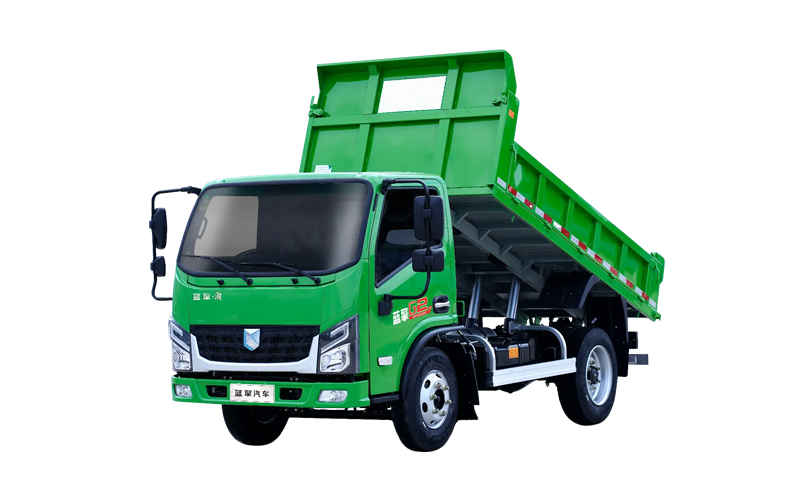

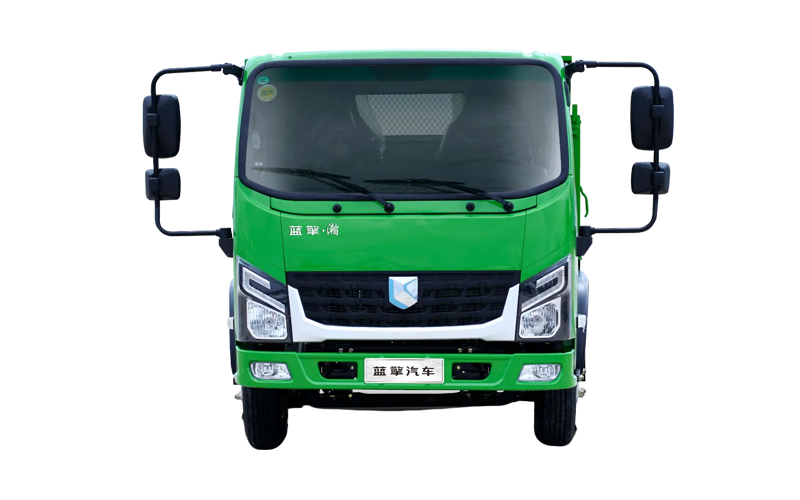

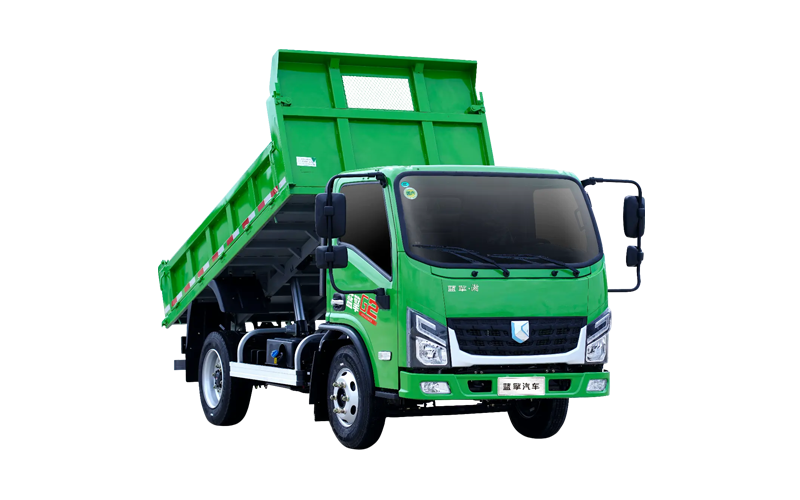

Weichai Landking G2

High efficiency and powerful performance

WP2.5T170E62 engine, torque up to 450 N·m.

High-efficiency SCR route, completely eliminating the risks of EGR blockage and breather icing.

Strong load-carrying capacity

Full high-strength steel frame, 215 mm double-layer longitudinal beam section, 610L material for longitudinal and cross beams.

8T rear axle, strong load-carrying capacity.

Safe and durable

Front axle Φ320×100, rear axle Φ320×130 brakes, stable performance and safe.

Air brake, reliable braking, powerful braking force.

Fast 8-speed transmission, reliable performance, crawler gear ratio 10.447, sufficient power for heavy-load climbing.

Strong lifting capacity, flexible and efficient

Vehicle height under 2.1 m, meeting application requirements for height-restricted underground garages and confined spaces.

90 mm cylinder bore dual front-end hydraulic cylinders, high lifting force, smooth lifting, dump angle 45° ± 2°.

Standard pneumatic lifting control mechanism, with power take-off (PTO), lifting, mid-stop, and lowering functions, offering convenient, flexible, and efficient operation.
