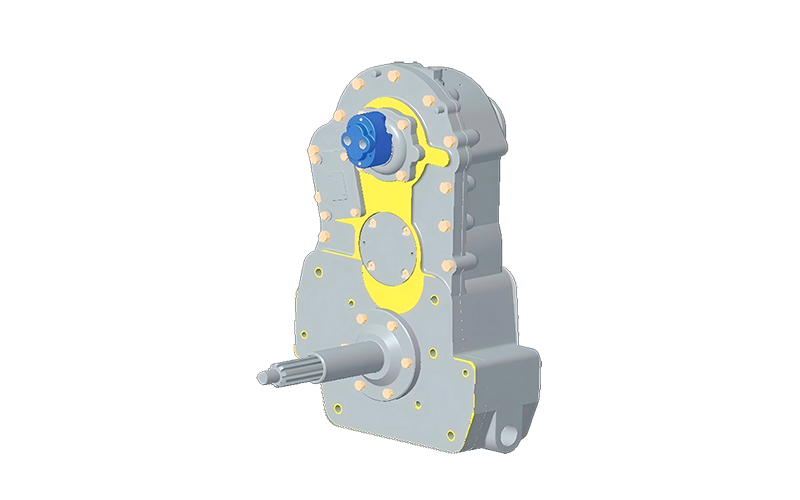

产品概述
Equipped with an integrated forced lubrication system, optional forced cooling device, and compatible with dual-countershaft transmissions with a 148 mm main center distance.
产品优势
The total output speed ratio remains independent of transmission gear changes.
Integrated forced lubrication system.
Optional forced cooling device.
The three-shaft output flange rotates in the same direction as the engine.
Requires an independent 5-liter oil fill.
Compatible with dual-countershaft transmissions with a 148 mm main center distance.
产品规格
|
Mounting position |
Front end |
|
Rated output torque (N·m) |
900 |
|
Rated input speed (rpm) |
2600 |
|
Weight (kg) |
115 |
|
Gear ratio |
1 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
