WEICHAI

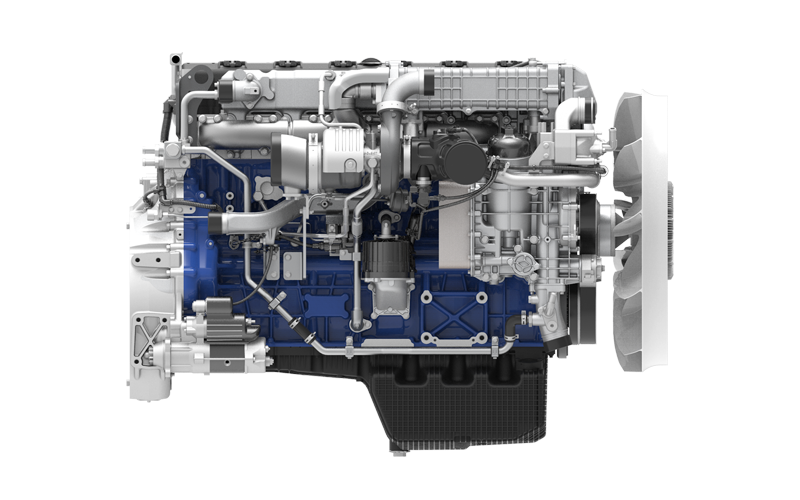

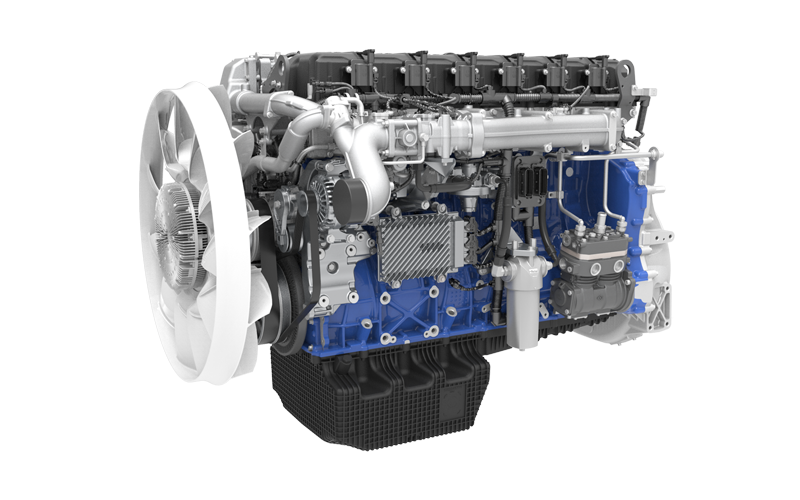

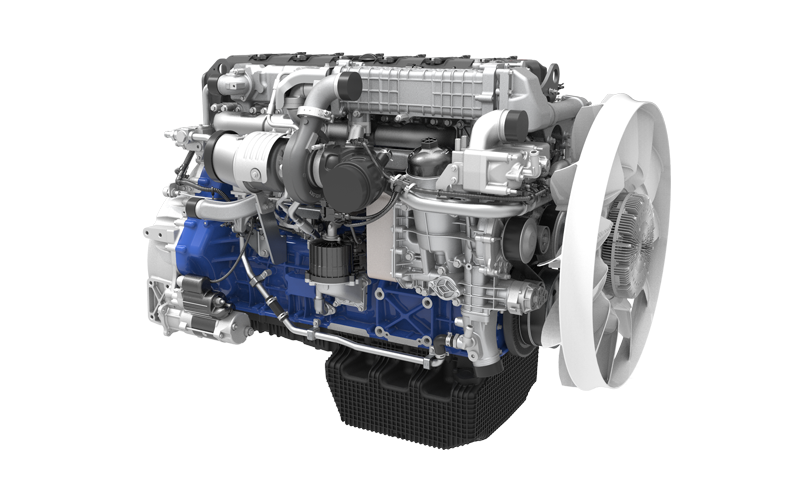

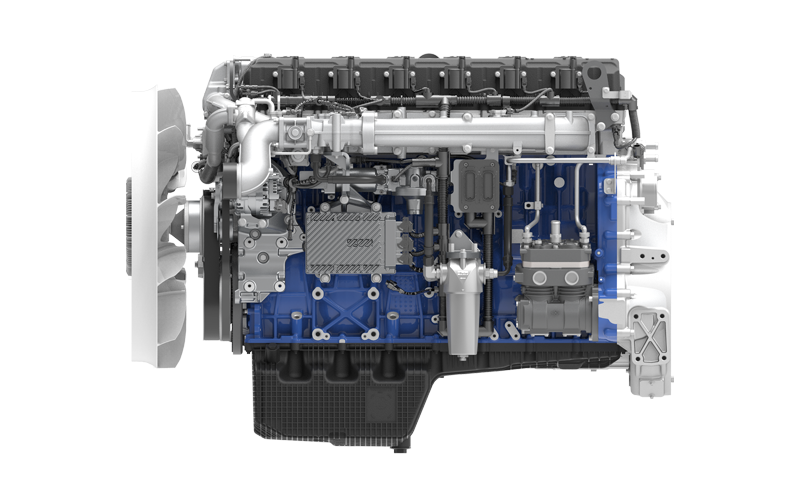

WP15NG Engine for Tractor

Applicable to long-haul logistics transportation

353-412/480-560

功率范围 kW/Ps

2600/950-1350

最大扭矩/转速 N·m / r/min

产品概述

Maximum power of 560 Ps, torque increased to 2600 N·m, and specific torque reaching 178 N·m/L, enhancing power performance and competitiveness; Power coverage of 353–412 kW, meeting Euro VI emission standards, suitable for 6×4 high-speed logistics tractors.

产品优势

Low gas consumption: Continuous-flow injection system for precise air-fuel ratio control, combined with pulse exhaust and high-efficiency turbocharger technology, ensuring more sufficient intake and smoother exhaust, with gas consumption per 100 km approximately 2 kg lower than products of the same power.

High reliability: Adopting exhaust manifold stress relief technology, cylinder head cooling enhancement technology, etc.; Knock monitoring and intelligent combustion control technology; Anti-surge technology and long-mileage maintenance technology.

Lightweight design: Modular design with integrated engine cooling/oil cooling module, and floating plastic cylinder head cover; Application of new materials, such as cast aluminum flywheel housing.

Excellent NVH performance: Rear-mounted gear train, drum-shaped engine block skirt, and standard reinforced webs to further reduce vibration and noise, being 2–3 dB(A) lower than competing products.

Powerful performance: Torque increased to 2600 N·m, with specific torque reaching 178 N·m/L.

Aesthetic upgrade: Family-style design, with smoother and more aesthetic water, gas, and electrical routing.

产品规格

功率范围 kW/Ps
353-412/480-560
最大扭矩转速 N·m / r/min
2600/950-1350
排放标准
Euro VI, P8
燃料
Natural gas
发动机型式
In-line
气缸数
6
气门数
4
排量 L
14.56
进气方式
Turbocharged and intercooled
发动机尺寸(长×宽×高) mm
1384×969×1130
G重量 kg
1050

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP15NG480E61

353/1700

2300/900-1400

14.56

Euro VI

ER+EGR+TWC

Tractor

4

WP15NG500E61

368/1700

2400/900-1400

14.56

Euro VI

ER+EGR+TWC

Tractor

4

WP15NG530E61

390/1700

2500/950-1350

14.56

Euro VI

ER+EGR+TWC

Tractor

4

WP15NG560E61

412/1700

2600/950-1350

14.56

Euro VI

ER+EGR+TWC

Tractor

4

WP15NG480E61

353/1700

2300/900-1400

14.56

Brazil P8

ER+EGR+TWC

Tractor

4

WP15NG500E61

368/1700

2400/900-1400

14.56

Brazil P8

ER+EGR+TWC

Tractor

4

WP15NG530E61

390/1700

2500/950-1350

14.56

Brazil P8

ER+EGR+TWC

Tractor

4

WP15NG560E61

412/1700

2600/950-1350

14.56

Brazil P8

ER+EGR+TWC

Tractor

4
