产品概述

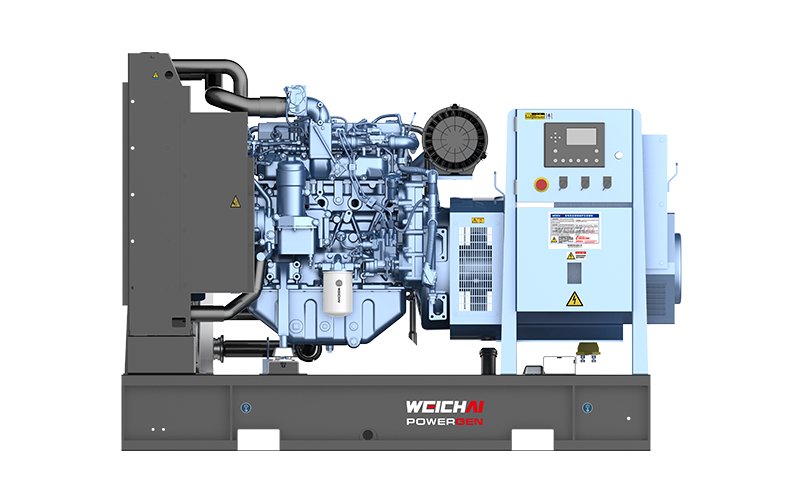

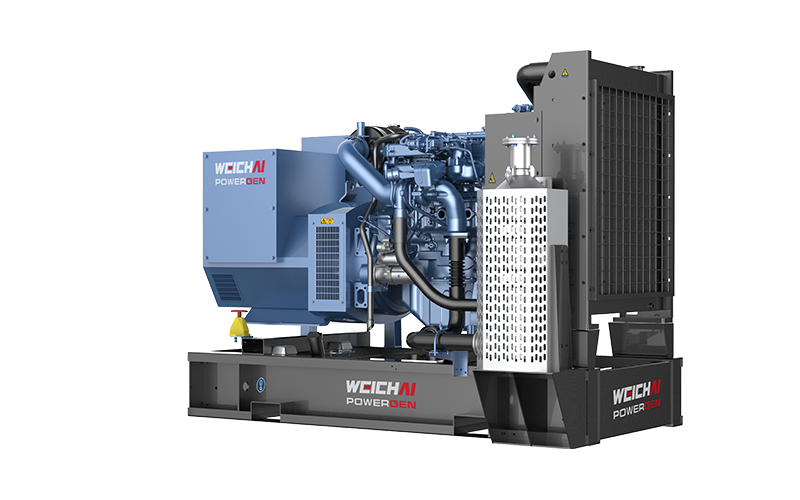

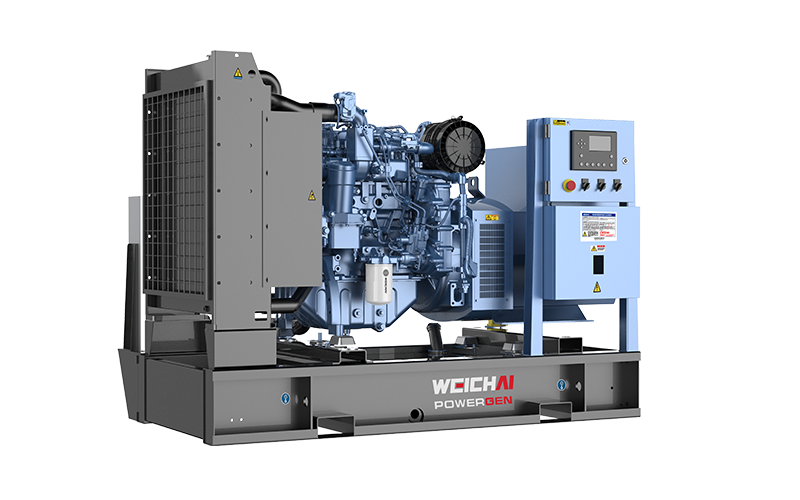

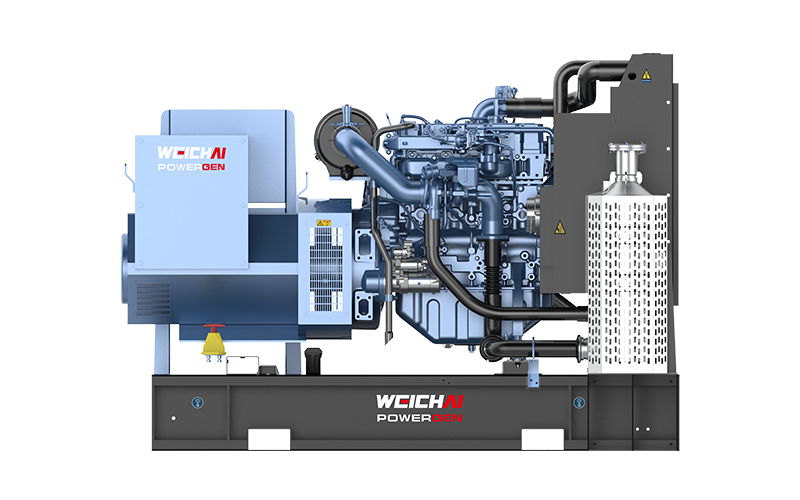

The 125-165 kVA series is equipped with the new-generation Weichai WP4.6N engine, featuring strong power performance and high power density with a range of 100-132 kW, while maintaining the advantages of high reliability, durability, and superior economy.
产品优势
Fuel System: Electronically controlled high-pressure common rail (HPCR) system delivers high injection pressure for increased engine power and improved fuel atomization, resulting in superior fuel economy; specifically developed electronic control functions for generator set operating conditions meet various control and speed regulation requirements
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Baudouin Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG138L1 |
1500 |
138/110 |
125/100 |
4M12G2D3/5 |
4 |
108×125 |
Electronic control |
Stage III |
|
WPG165L1 |
1500 |
165/132 |
150/120 |
4M12G4D3/5 |
4 |
108×125 |
Electronic control |
Stage III |
