产品概述

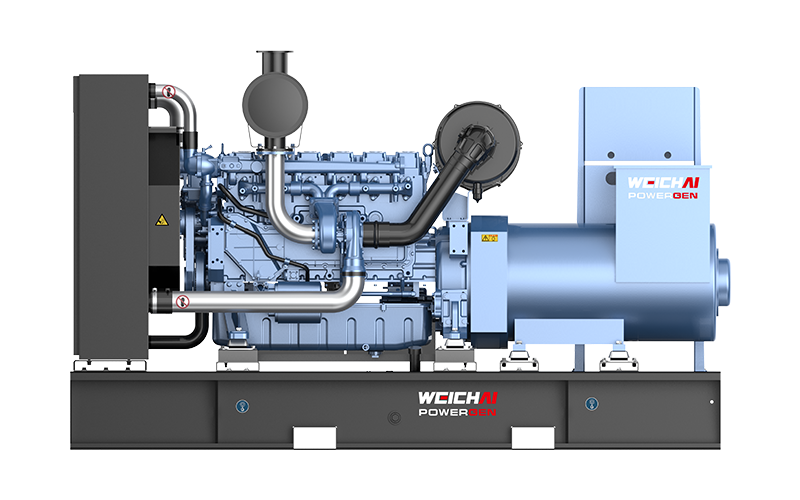

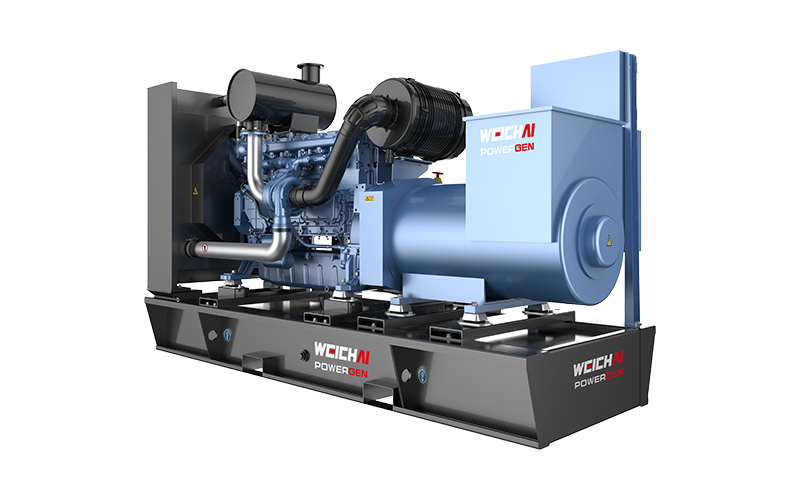

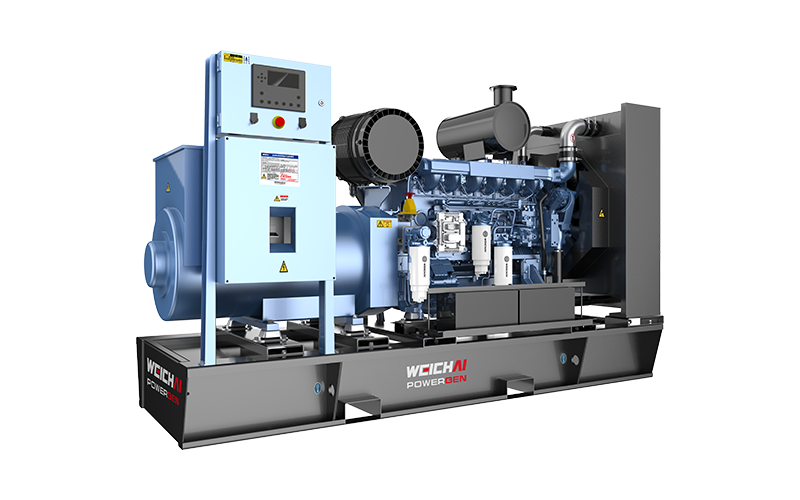

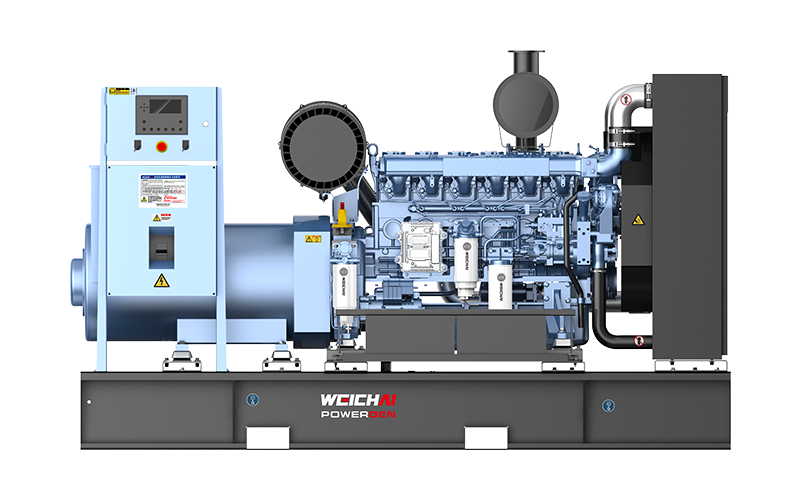

Designed for medium-to-high power continuous power supply and complex load scenarios, suitable for prime or standby power requirements in data centers, factory production lines, infrastructure projects, and port logistics.
产品优势
Intelligent Control: Supports CAN bus communication and is compatible with mainstream ATS and remote cloud monitoring platforms, featuring remote start/stop, parameter monitoring, and fault alarming
High Adaptability: Capable of operating in complex environments including high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions, while maintaining performance with varying fuel qualities
High Reliability: The products have undergone over thirty durability and performance tests, ensuring long-lasting durability and superior reliability of the generator sets
High Economy: Matched with high-pressure ratio turbochargers to increase air intake and optimize combustion for significant fuel savings
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG220*8 |
1500 |
220/176 |
200/160 |
WP10D200E200 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG250*8 |
1500 |
250/200 |
225/180 |
WP10D238E200 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG275*8 |
1500 |
275/220 |
250/200 |
WP10D264E200 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG350*8 |
1500 |
350/280 |
320/250 |
WP10D320E200 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG200*86 |
1800 |
250/200 |
225/180 |
WP10D238E201 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG220*86 |
1800 |
275/220 |
250/200 |
WP10D264E201 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG250*86 |
1800 |
313/250 |
/ |
WP10D288E201 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
|
WPG300*86 |
1800 |
375/300 |
350/280 |
WP10D360E201 |
6 |
126×130 |
Electronic Governor |
Non-Road Emission Exempt |
