Suitable for general market, data centers, real estate, oil and mining fields, equipment rental, water and power grid infrastructure, power stations, specialized products, and communication systems.
功率范围/持续功率
结构形式
产品概述

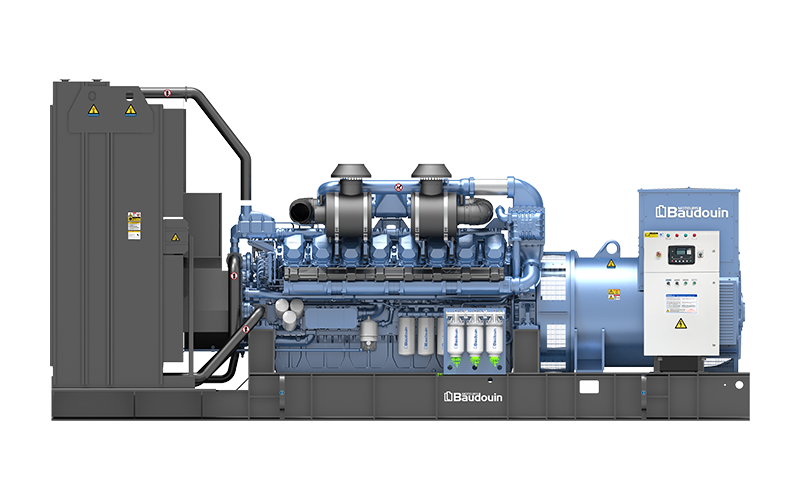

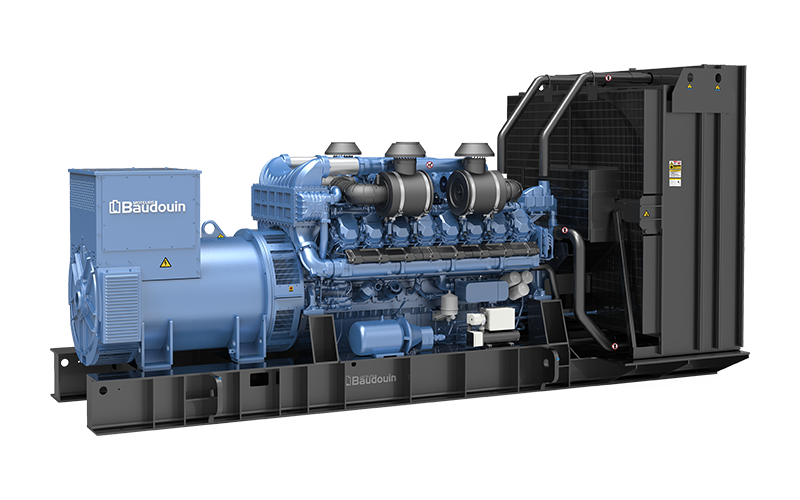

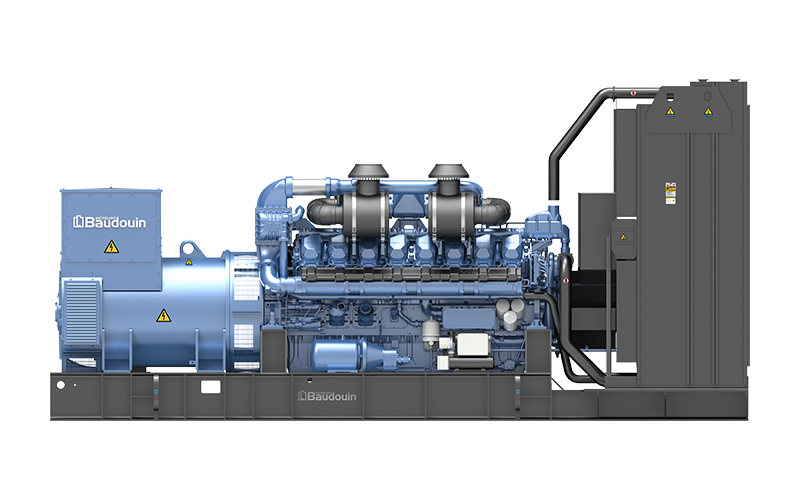

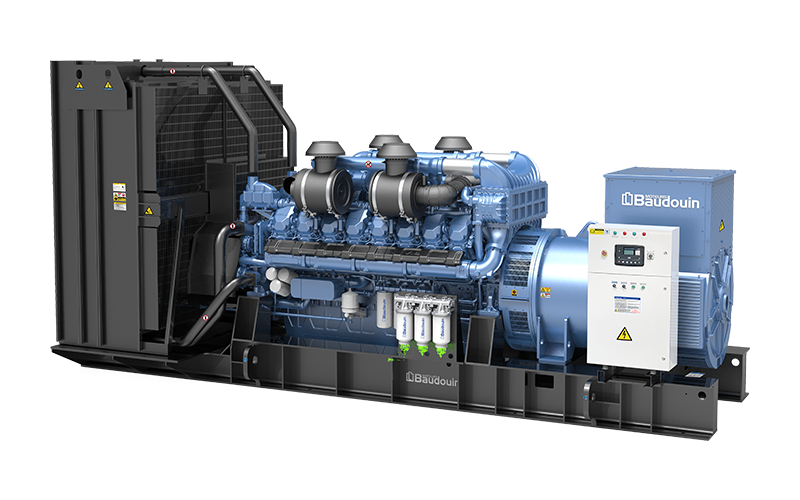

The 16M33 series land-based standard generator set is a high-performance power product with fully independent design and research for the engine, alternator, and control system.
产品优势
High-Efficiency Eco-friendly Power:Equipped with an intelligent ECU (Engine Control Unit) fuel system, achieving ultra-low fuel consumption through precise control of fuel injection and air-fuel ratio, with economy comparable to top international brands. Complies with EPA II emission standards, balancing power output with environmental compliance
All-Weather Operational Adaptability: Features military-grade protection design, turbocharged intercooling system, and low-temperature heating device, ensuring stable operation in extreme temperatures from -30℃ to 55℃, altitudes up to 3,000 meters, and 95% humidity, effortlessly handling harsh environments such as mining sites and islands
Intelligent Control Platform: Integrated with a digital smart controller, supporting millisecond-level dynamic response, meeting G3 transient performance standards, and enabling cloud-based energy efficiency management via IoT modules
Long-Term Reliable Guarantee: The generator sets have undergone more than thirty durability and performance tests, ensuring long-lasting durability and superior reliability
Modular Service System: Based on a platform-based development architecture, major components are interchangeable across models, significantly reducing maintenance downtime; Equipped with an intelligent diagnostic interface and supported by Weichai's global emergency service network, significantly reducing lifecycle operation and maintenance costs
产品规格
备注:产品参数及图片仅供参考;如有变动,不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Baudouin Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG1750*7 |
1500 |
1750/1400 |
/ |
16M33G4D2/5 |
16 |
150×185 |
Electronic control |
EPA Tier II |
|
WPG1900*7 |
1500 |
1900/1520 |
/ |
16M33G6D2/5 |
16 |
150×185 |
Electronic control |
EPA Tier II |
|
WPG2000*7 |
1500 |
2000/1650 |
/ |
16M33G8D2/5 |
16 |
150×185 |
Electronic control |
EPA Tier II |
|
WPG1500*76 |
1800 |
1875/1500 |
/ |
16M33G2D2/6 |
16 |
150×185 |
Electronic control |
EPA Tier II |
|
WPG1750*76 |
1800 |
2187.5/1750 |
/ |
16M33G4D2/6 |
16 |
150×185 |
Electronic control |
EPA Tier II |
