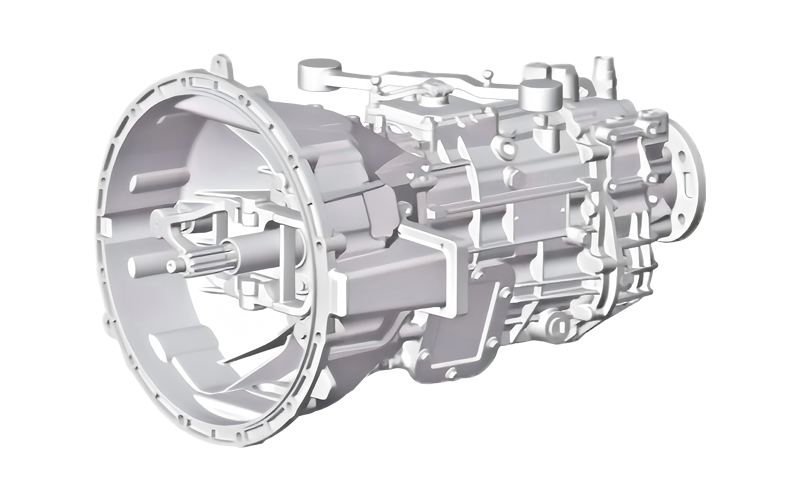

产品概述
Dual overdrive ratios; Three-bearing support design, low noise levels, and heavy-duty tapered roller bearings; Carbon fiber synchronizers, multi-rail control system, and low shift effort; Die-cast aluminum alloy housing, shift forks, and lightweight design.
产品优势
Dual overdrive ratios.
Three-bearing support design, low noise levels, and heavy-duty tapered roller bearings.
Carbon fiber synchronizers, multi-rail control system, and low shift effort.
Die-cast aluminum alloy housing, shift forks, and lightweight design.
产品规格
|
Input torque (N·m) |
450 |
|
Maximum speed (rpm) |
4500 |
|
Overall length (mm) |
720.0 |
|
Weight ※: Iron / Aluminum (kg) |
70 (Aluminum) |
|
Oil capacity (L), tolerance ±4% |
2.7 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
